MPZ2012S601AT000

Overview

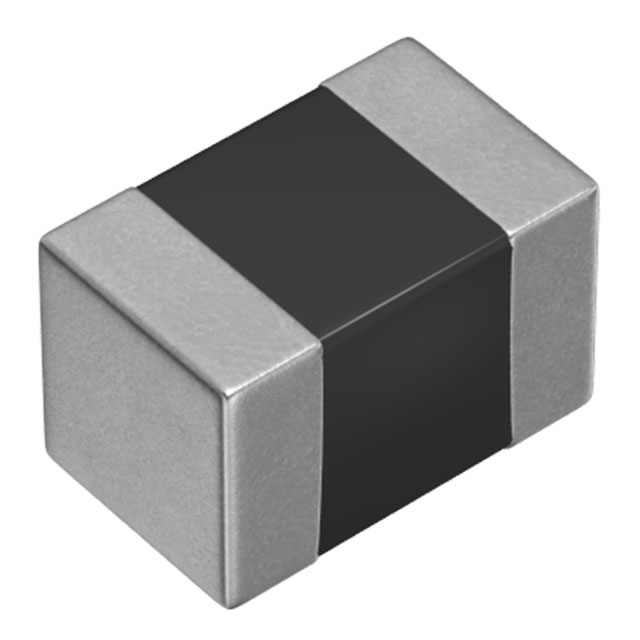

The MPZ2012S601AT000 is a single-line ferrite bead from the TDK MPZ series, designed for power line noise suppression. It features an impedance of 600 Ohms at 100 MHz and supports a maximum rated current of 2A. The component has a maximum DC resistance (DCR) of 100 milliohms and operates within a temperature range of -55°C to +125°C. Housed in a 0805 (2012 metric) surface-mount package with dimensions of 2.00mm x 1.25mm x 1.05mm max, it meets AEC-Q200 automotive qualification standards.

Feature Summary

• Provides effective noise reduction on power lines while maintaining low DC resistance for high-current applications
• Automotive-grade reliability certified under AEC-Q200 standards for harsh environment durability
• Compact 0805 footprint enables efficient space utilization in dense circuit board layouts

Applications

• Electronic Control Units (ECUs)
• Powertrain systems
• Body control modules
• Automotive multimedia and telematics

Procurement Notes

Verify the specific ordering suffix against official TDK documentation to ensure correct packaging and tolerance specifications. Confirm that the selected variant matches the required AEC-Q200 qualification status if used in automotive contexts. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current production status before finalizing procurement orders.

Selection Notes

Select this component when designing circuits requiring significant current handling capability alongside moderate high-frequency noise attenuation. The low DC resistance minimizes power loss compared to standard beads, making it suitable for sensitive power rails. Ensure the 0805 package size aligns with the PCB land pattern and that the 2A rating exceeds the peak operational current of the target application.

Part Context

This component belongs to the MPZ series of multilayer ferrite chip beads manufactured by TDK Corporation. The series is specifically engineered for automotive electronics, offering robust performance across wide temperature ranges. The MPZ2012 designation indicates the 0805 case size, distinguishing it from smaller or larger variants within the same product family.

Replacement Considerations

TDK recommends MPZ2012S601ATD25 as a direct substitute. Verify compatibility regarding impedance tolerance and packaging format before implementation.
