MR-2032

Power Line Filter Modules Overview

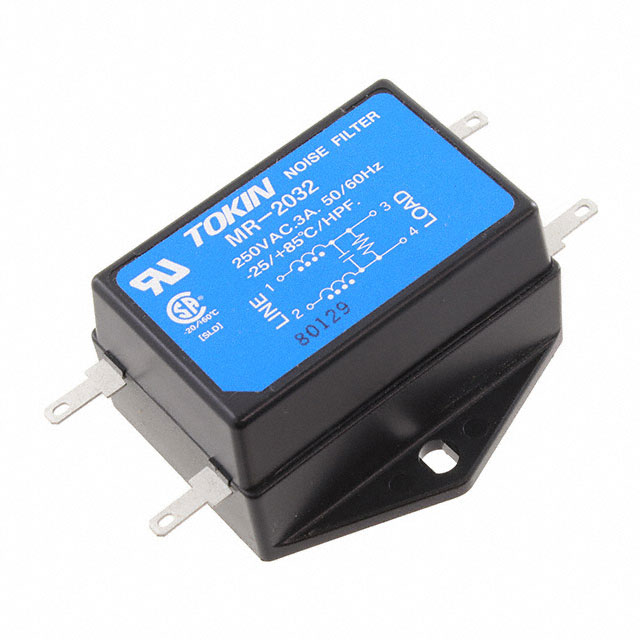

The KEMET MR-2032 is a single-phase power line filter designed for chassis mounting. It features a plastic enclosure and operates at a voltage rating of 250 VAC/VDC with a current capacity of 3 A. The unit utilizes faston terminals for connection and provides EMI/RFI noise filtering suitable for EMC compliance.

Power Line Filter Modules Feature Summary

• Single-stage EMI/RFI noise filtration
• Plastic box enclosure design
• Faston terminal connections

Power Line Filter Modules Applications

• Single-phase EMC compliance
• Power supply input filtering
• Electronic equipment noise suppression

Power Line Filter Modules Procurement Notes

Verify the specific terminal pitch and lead configuration against your PCB or wire harness requirements before integration. Confirm that the 3 A current rating meets the operational load. Check for any updated datasheets regarding RoHS compliance status, as manufacturing processes may evolve over time.

Power Line Filter Modules Selection Notes

Select this component when a compact, single-phase solution is required for low-current applications up to 3 A. The plastic housing offers cost-effective protection compared to metal alternatives. Ensure the operating temperature range of -20°C to +60°C aligns with the environmental conditions of the installation site.

Power Line Filter Modules Part Context

This model belongs to KEMET's MR series of power line filters. These components are engineered to meet basic electromagnetic compatibility standards for single-phase circuits. The series provides a standardized form factor for easy integration into various electronic assemblies requiring fundamental noise reduction.

Power Line Filter Modules Replacement Considerations

Consult official KEMET documentation for direct cross-references. Verify that any substitute maintains the 250 VAC rating, 3 A current capacity, and compatible faston terminal dimensions to ensure mechanical and electrical interchangeability.
