MR10Q010CMB

Memory IC Overview

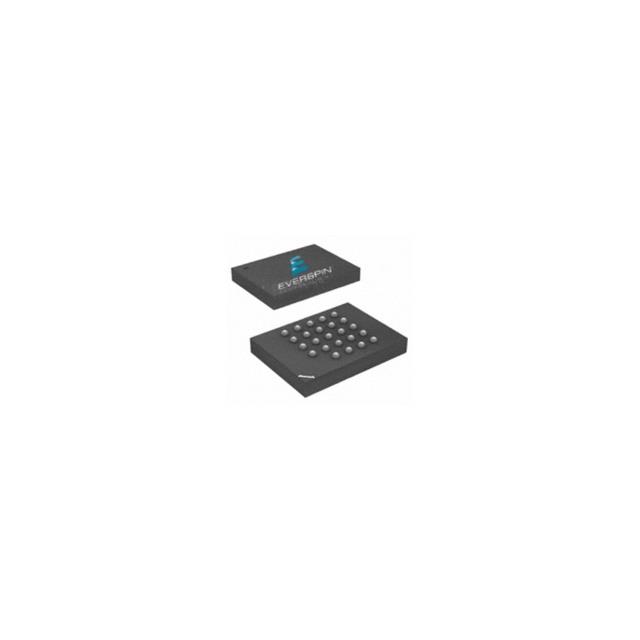

The MR10Q010CMB is a 1 Mbit Magnetoresistive Random Access Memory (MRAM) device manufactured by Everspin Technologies. It features a storage organization of 128K x 8 bits and utilizes a Quad SPI serial interface for data transfer. The component operates within a supply voltage range of 3 V to 3.6 V, with access times specified at 7 ns. It is housed in a BGA-24 package designed for surface mount technology. The device supports an industrial operating temperature range from -40°C to +85°C.

Memory IC Feature Summary

• Non-volatile memory architecture retains data without power
• Quad Serial Peripheral Interface enables high-speed communication
• Industrial temperature rating ensures reliability in harsh environments

Memory IC Applications

• Industrial control systems requiring persistent data storage
• Automotive electronics operating in extended temperature ranges
• Embedded systems needing fast boot-up and high endurance

Memory IC Procurement Notes

Verify the specific suffix 'CMB' against official Everspin documentation to confirm the commercial temperature grade (-40 to +85°C) and BGA-24 packaging. Ensure compatibility with existing PCB footprints and SPI signal integrity requirements before finalizing procurement orders.

Memory IC Selection Notes

Select this part when non-volatility combined with high write endurance is required. Compare against volatile SRAM or flash alternatives where power loss protection is critical. Confirm that the 128K x 8 organization fits the application's memory map and that the BGA-24 package is suitable for the assembly process.

Memory IC Part Context

This component belongs to the MR10Q010 series of MRAM devices. It shares core specifications with variants like MR10Q010SC but differs in package type and temperature rating. The series represents Everspin's solution for replacing traditional EEPROM and Flash in applications demanding unlimited write cycles.

Memory IC Replacement Considerations

Direct substitutes include MR10Q010CMBR for reel packaging or MR10Q010MB for commercial temperature grades. Verify pinout compatibility and thermal characteristics when cross-referencing with other MRAM families.
