MR10Q010CSC

Memory IC Overview

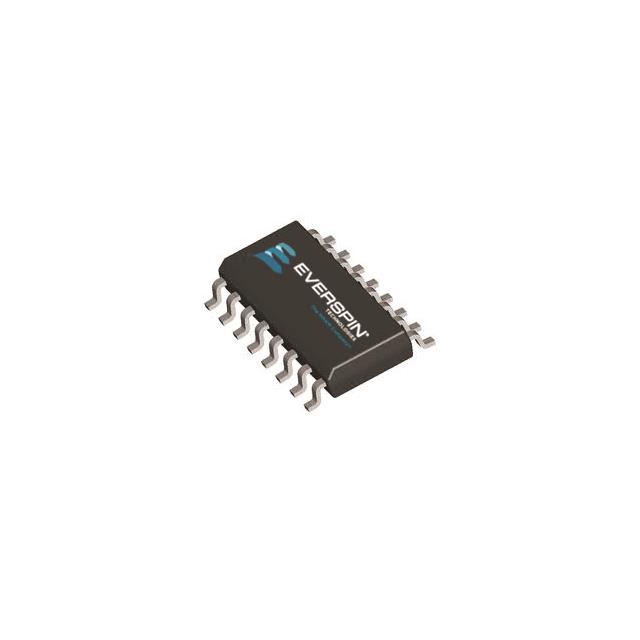

The MR10Q010CSC is a 1 Mbit Magnetoresistive Random Access Memory (MRAM) device organized as 128K x 8 bits. It features a Quad SPI serial interface with an access time of 7 ns. The component operates within a supply voltage range of 3 V to 3.6 V and supports surface mount installation in a SOIC-16 package. It is rated for industrial temperature conditions from -40°C to +85°C.

Memory IC Feature Summary

• Non-volatile data retention utilizing magnetoresistive technology
• Quad Serial Peripheral Interface (SPI) communication protocol
• Industrial grade operational temperature capability

Memory IC Applications

• Data logging systems requiring persistent storage
• Industrial control equipment memory modules
• Embedded systems needing fast random access non-volatile memory

Memory IC Procurement Notes

Verify the specific suffix 'CSC' corresponds to the tray packaging configuration, distinct from reel or cut tape variants. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure moisture sensitivity handling protocols are observed during assembly processes.

Memory IC Selection Notes

Select this part when a 1 Mbit capacity with 8-bit word width is required. The Quad SPI interface suits applications needing high-speed serial data transfer. Verify that the SOIC-16 footprint aligns with the target PCB design constraints and thermal management requirements.

Memory IC Part Context

This component belongs to the MR10Q010 series of MRAM devices manufactured by Everspin Technologies. It provides a solid-state alternative to traditional flash memory, offering faster write speeds and higher endurance. The series is designed for robust performance in demanding electronic environments.

Memory IC Replacement Considerations

Check for MR10Q010CSCR if reel or cut tape packaging is preferred instead of trays. Verify pinout compatibility before substituting with other MRAM families.
