MRI43100W

Power Line Filter Modules Overview

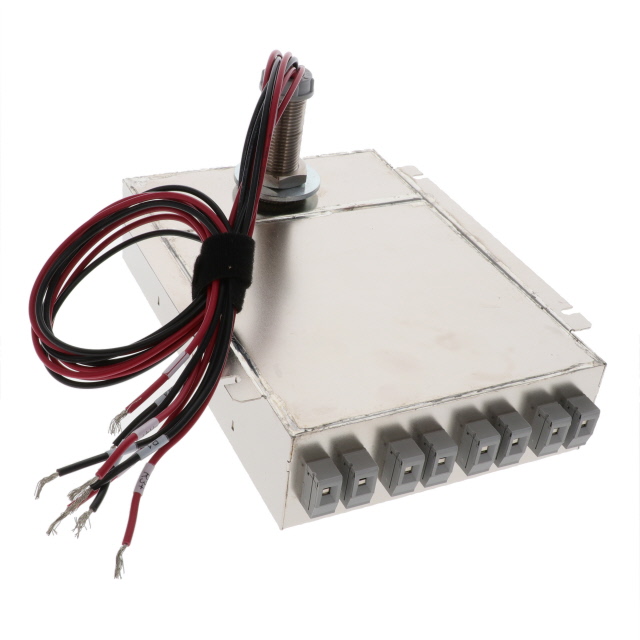

The TE Connectivity Corcom Filters MRI43100W is a single-stage EMC/EMI line filter designed for medical MRI LED lighting applications. It operates at a rated voltage of 60 VDC and supports a current rating of 3 A. The unit features an inductance of 34.32 mH and utilizes wire lead termination. It is constructed for chassis mounting and functions within a temperature range of -10°C to +60°C.

Power Line Filter Modules Feature Summary

• Engineered specifically for MRI rooms utilizing Class II LED drivers
• Provides single-stage EMC/EMI filtering for DC power lines
• Includes UL compliance certification for safety standards

Power Line Filter Modules Applications

• MRI room LED lighting systems
• Class II LED driver power supplies
• Medical imaging facility electrical infrastructure

Power Line Filter Modules Procurement Notes

Verify the specific application requirements against the 60 VDC and 3 A ratings before procurement. Confirm that the chassis mount style and wire lead terminations are compatible with the existing assembly design. Ensure the operating temperature range of -10°C to +60°C meets the environmental conditions of the installation site. Cross-reference the part number MRI43100W with official TE Connectivity documentation to confirm current availability and manufacturing status.

Power Line Filter Modules Selection Notes

Select this component when designing or upgrading MRI lighting circuits that require dedicated EMI suppression for Class II LED drivers. The single-stage configuration offers a compact solution compared to multi-stage alternatives. Consider the wire lead termination method if direct wiring is preferred over terminal blocks. The 60 VDC rating limits its use to low-voltage DC applications, distinguishing it from AC mains filters in the same series.

Power Line Filter Modules Part Context

This component belongs to the TE Connectivity Corcom MRI LED Lighting Filter series. These filters are specialized modules targeting the unique electromagnetic interference challenges found in magnetic resonance imaging environments. The series provides targeted solutions for powering LED lights in these sensitive medical settings, ensuring signal integrity and regulatory compliance.

Power Line Filter Modules Replacement Considerations

The MRI43100W is a specialized medical filter with specific voltage and current ratings. Direct substitutes may not exist due to the unique inductance value and medical-grade certifications. Evaluate other Corcom MRI series filters only if they match the 60 VDC, 3 A, and single-stage requirements precisely.
