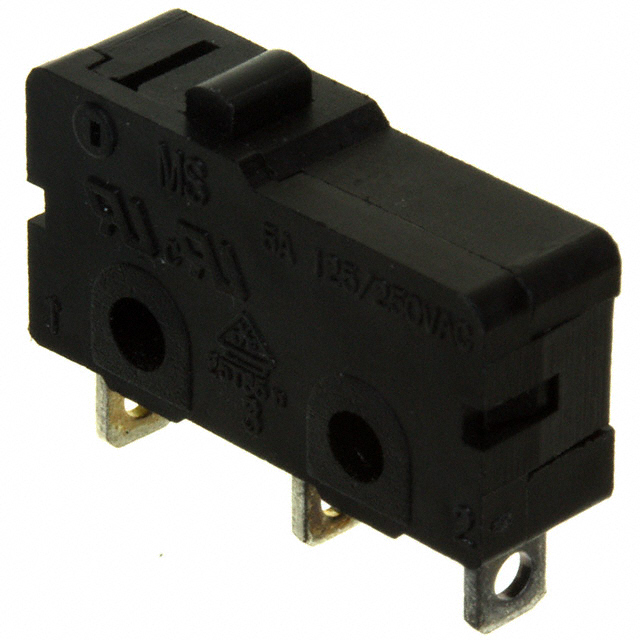

MS0850500F080C1A

MS0850500F080C1A is listed in the Limit Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH SNAP ACTION SPDT 5A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MS0850500F080C1A

• Description：SWITCH SNAP ACTION SPDT 5A 125V
• Series：MS
• Mfr：E-Switch
• Package：Bulk
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC)
• Voltage Rating - AC：125 V
• Actuator Type：Round (Pin Plunger)
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.110" (2.8mm)
• Ingress Protection：-
• Features：-
• Operating Force：80gf
• Release Force：25gf
• Operating Position：0.335" (8.5mm)
• Pretravel：0.043" (1.1mm)
• Differential Travel：-
• Overtravel：-
• Operating Temperature：-25°C ~ 85°C
• Voltage Rating - DC：-

Limit Switches datasheet and documents for MS0850500F080C1A
