Product Detailed Parameters

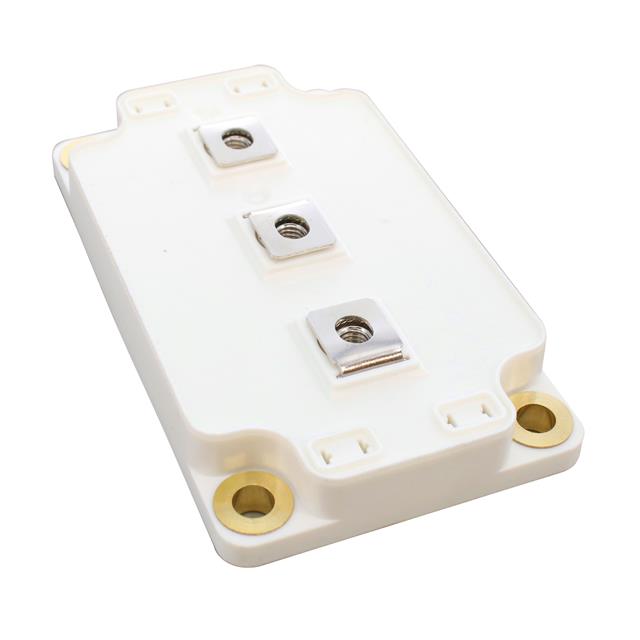

- Description：DIODE MODULE SIC 700V 300A SP6
- Series：-
- Mfr：Microchip Technology
- Package：Tube
- Diode Configuration：1 Pair Series Connection
- Technology：SiC (Silicon Carbide) Schottky
- Voltage - DC Reverse (Vr) (Max)：700 V
- Current - Average Rectified (Io) (per Diode)：300A
- Voltage - Forward (Vf) (Max) @ If：1.8 V @ 300 A
- Speed：No Recovery Time > 500mA (Io)
- Reverse Recovery Time (trr)：0 ns
- Current - Reverse Leakage @ Vr：1.2 mA @ 700 V
- Operating Temperature - Junction：-40°C ~ 175°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：SP6
- Grade：-
- Qualification：-
Download product information
Overview
The MSCDC300A70AG is a Silicon Carbide (SiC) Schottky Barrier Diode module manufactured by Microchip Technology. It features a Phase Leg configuration with a reverse voltage rating of 1.7 kV and a forward current capacity of 300 A. The module utilizes screw mount installation and operates within a temperature range of -40°C to +125°C. Its forward voltage is specified at 1.5 V, supporting high-efficiency power conversion applications.
Feature Summary
- Utilizes Silicon Carbide (SiC) technology for superior thermal performance and efficiency
- Designed as a Phase Leg diode module for robust power switching applications
- Features screw mount installation for secure mechanical integration
Applications
- High-voltage power conversion systems
- Industrial motor drives
- Uninterruptible power supplies (UPS)
Procurement Notes
Verify the specific suffix 'AG' against official Microchip documentation to confirm exact manufacturing specifications and compliance status. Ensure compatibility with existing thermal management solutions and mounting hardware requirements before procurement. Cross-reference datasheet revisions to confirm parameter stability.
Selection Notes
Select this component for applications requiring high blocking voltage and significant current handling in a compact phase leg topology. Evaluate thermal resistance characteristics against system heat dissipation capabilities. Confirm that the 1.7 kV rating provides adequate margin for the target circuit's peak inverse voltage conditions.
Part Context
This device belongs to Microchip's portfolio of SiC Schottky diode modules, optimized for reliability and efficiency in demanding power electronics environments. These modules are engineered to reduce system size and assembly time while maintaining high performance standards compared to traditional silicon alternatives.
Replacement Considerations
Consult official Microchip substitution guides or equivalent manufacturer datasheets for verified replacements. Ensure any substitute matches the 1.7 kV / 300 A ratings and SP6C package form factor.
