MSCDC450A120AG

Overview

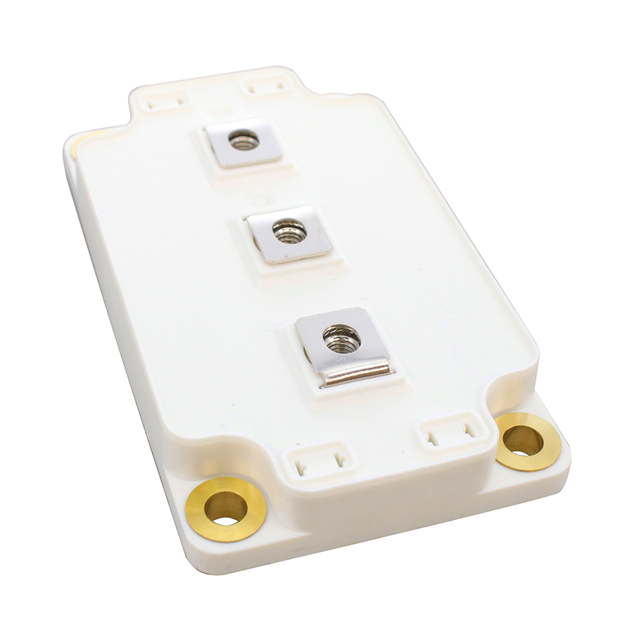

The MSCDC450A120AG is a Silicon Carbide (SiC) Schottky Barrier Diode module manufactured by Microchip Technology. It features a Phase Leg configuration with a maximum repetitive reverse voltage of 1200 V and a continuous forward current rating of 450 A. The module utilizes an SP6C package designed for screw mount installation. Electrical characteristics include a typical forward voltage of 1.5 V at rated current. The device operates within a junction temperature range from -40°C to +125°C, ensuring reliability in high-power applications requiring robust thermal performance and low switching losses.

Feature Summary

• Utilizes Silicon Carbide (SiC) technology for superior thermal conductivity and high-temperature operation capabilities compared to traditional silicon devices.
• Features a Phase Leg configuration suitable for efficient power conversion stages in high-voltage systems.
• Designed with a rugged SP6C package optimized for screw mounting to ensure secure mechanical connection and effective heat dissipation.

Applications

• High-frequency inverters for electric vehicle powertrains
• Industrial motor drive systems requiring high current handling
• Uninterruptible power supply (UPS) topologies

Procurement Notes

Verify the specific ordering suffix and package variant against the official Microchip datasheet before procurement. Confirm that the required thermal interface materials and mounting hardware are compatible with the SP6C form factor. Ensure that the supply chain source provides valid traceability documentation for critical power electronics components.

Selection Notes

Select this component when designing circuits necessitating high current capacity combined with high blocking voltage. Consider the thermal management requirements associated with the 450 A rating and the specific forward voltage drop characteristics. Evaluate the compatibility of the Phase Leg topology with the target system architecture to ensure optimal performance and efficiency.

Part Context

This module belongs to Microchip's SiC Schottky Diode Modules product line, specifically engineered for demanding power electronic applications. It complements other discrete and power modules offered by the manufacturer, providing a standardized solution for phase leg implementations in modern high-efficiency power conversion systems.

Replacement Considerations

Consult official Microchip documentation for verified substitute part numbers. Cross-reference electrical parameters such as voltage ratings, current capacities, and package dimensions to ensure functional equivalence without compromising system integrity or safety margins.
