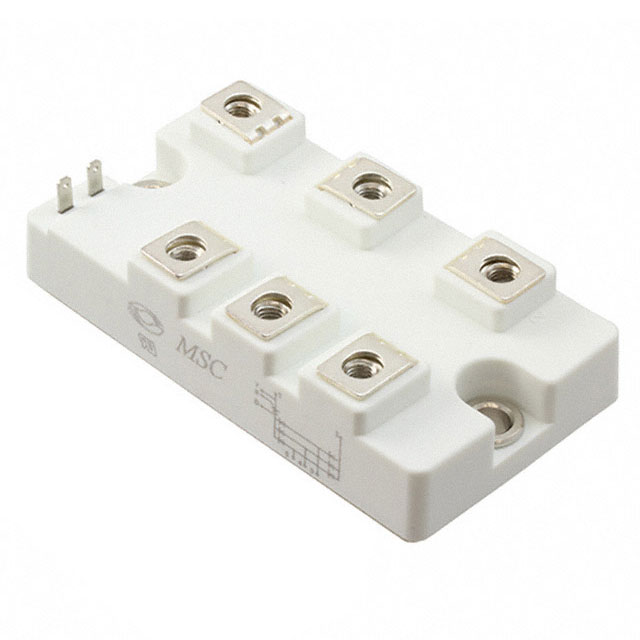

MSDT100-16

Description：PWR MOD THYRISTOR 1600V 100V SM4
Series：-

SKU:58aaab49d3c9 Category: SCRs - Modules Brand: Microsemi Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PWR MOD THYRISTOR 1600V 100V SM4
Series：-
Mfr：Microsemi Corporation
Package：Bulk
Structure：Bridge, 3-Phase - SCRs/Diodes
Number of SCRs, Diodes：1 SCR, 6 Diodes
Voltage - Off State：1.6 kV
Current - On State (It (AV)) (Max)：100 A
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：1200A @ 50Hz
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：M4 Module
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：-
Grade：-
Qualification：-

Download product information

MSDT100-16

Overview

The MSDT100-16 is a glass passivated three-phase rectifier bridge manufactured by Microsemi Corporation. It features a blocking voltage range of 800 to 1800V and an average forward current rating of 100 Amps. The device utilizes heat transfer through an aluminum oxide DCB ceramic isolated metal baseplate for thermal management.

Feature Summary

Glass passivated chip construction
Heat transfer via aluminum oxide DCB ceramic isolated metal baseplate

Applications

Three phase rectifiers for power supplies
Rectifiers for DC motor field supplies
Battery charger rectifiers
Input rectifiers for variable frequency drives

Procurement Notes

Verify the exact part number MSDT100-16 against official Microsemi documentation, as standard listings often reference the MSD100-16 variant. Confirm package type, pinout configuration, and specific voltage grade availability directly with the manufacturer or authorized distributors before procurement.

Selection Notes

Select this component for high-current three-phase applications requiring robust thermal dissipation. Ensure the system design accommodates the isolated metal baseplate mounting requirements. Verify that the 100A current rating and specified blocking voltage meet the circuit's peak operational demands.

Part Context

This component belongs to the family of glass passivated three-phase rectifier bridges produced by Microsemi. These devices are engineered for industrial power conversion environments where reliability under high thermal stress is critical. The series typically includes variants with different voltage ratings within the same physical footprint.
