Product Detailed Parameters
- Description：IC LED DRVR LIN PWM 30MA 32SOP
- Series：Adaptive SourcePower™
- Mfr：Microchip Technology
- Package：Tube
- Type：Linear
- Topology：-
- Internal Switch(s)：Yes
- Number of Outputs：16
- Voltage - Supply (Min)：4.75V
- Voltage - Supply (Max)：5.5V
- Voltage - Output：-
- Current - Output / Channel：30mA
- Frequency：-
- Dimming：PWM
- Applications：Backlight
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount

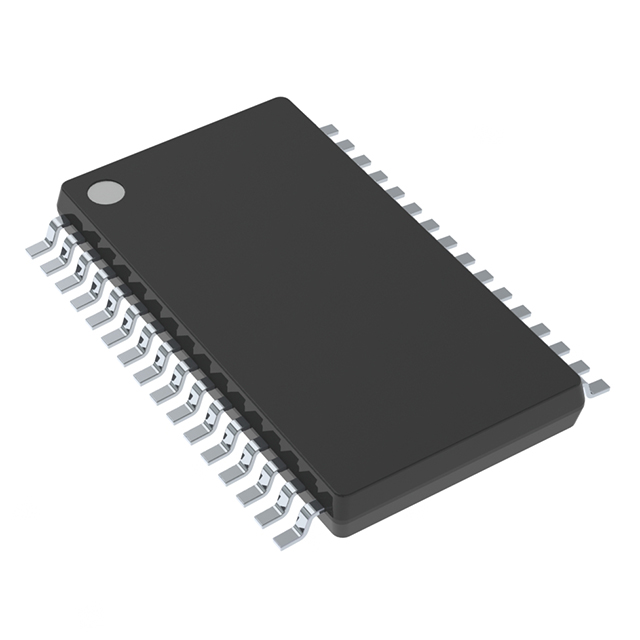

- Package / Case：32-SOIC (0.295", 7.50mm Width)
- Supplier Device Package：32-SOP
- Grade：Automotive
- Qualification：-
Download product information
Overview
The MSL3167GU is a specialized LED driver integrated circuit manufactured by Microchip Technology. It features 16 output channels, each capable of delivering up to 30mA. The device supports linear PWM dimming and includes a simple interface for control. It operates within a supply voltage range of 4.75V to 5.5V and is designed for an operating temperature range of -40°C to 85°C. The component is housed in a compact 32-SOP package.
Feature Summary
- Provides 16 independent output channels for LED driving applications
- Supports linear PWM dimming functionality for brightness control
- Features a simple interface for easy integration into lighting systems
Applications
- LED lighting drivers
- Display backlighting systems
- General illumination control circuits
Procurement Notes
Verify the specific suffix (e.g., GU) against official Microchip documentation to confirm package type and tape/reel specifications. Confirm current manufacturing status as some variants may be obsolete. Ensure compatibility with system voltage requirements (4.75V-5.5V) and thermal constraints (-40°C to 85°C). Cross-reference pinouts with the latest datasheet before PCB layout finalization.
Selection Notes
Select this component when a multi-channel LED driver with linear PWM dimming is required. It is suitable for applications needing 16 outputs with 30mA per channel. Consider the 32-SOP package size for space-constrained designs. Verify that the input voltage range matches the system power supply. Check for alternative packages if lead-free or specific reel options are needed.
Part Context
The MSL3167GU belongs to Microchip's PMIC - LED Drivers catalog. It is part of a family of components designed for efficient LED management. Similar parts may offer different channel counts or dimming methods. The GU suffix typically denotes a specific package variant. Consult the full datasheet for detailed electrical characteristics and application circuits.
Replacement Considerations
Check Microchip's official substitution guide for direct replacements. Note that the MSL3167GU-R variant exists but may have different packaging. Verify pin-to-pin compatibility and electrical parameters before substituting. Ensure the replacement supports the same 16-channel linear PWM dimming requirement.
