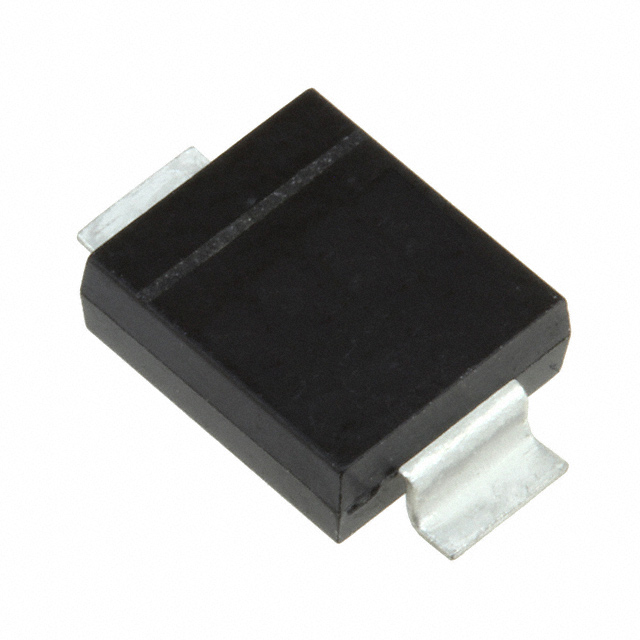

MSMCG22CAE3 is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is TVS DIODE 22VWM 35.5VC DO214AB. Review the specifications below when checking this part for your BOM.
Tvs Diodes specifications for MSMCG22CAE3
- Description：TVS DIODE 22VWM 35.5VC DO214AB
- Series：-
- Mfr：Microchip Technology
- Package：Bulk
- Type：Zener
- Bidirectional Channels：1
- Voltage - Reverse Standoff (Typ)：22V
- Voltage - Breakdown (Min)：24.4V
- Voltage - Clamping (Max) @ Ipp：35.5V
- Current - Peak Pulse (10/1000µs)：42.2A
- Power - Peak Pulse：1500W (1.5kW)
- Power Line Protection：No
- Applications：General Purpose
- Capacitance @ Frequency：-
- Operating Temperature：-65°C ~ 150°C (TJ)
- Mounting Type：Surface Mount
- Package / Case：DO-215AB, SMC Gull Wing
- Supplier Device Package：DO-214AB (SMCG)
- Unidirectional Channels：-
- Grade：Military
- Qualification：MIL-PRF-19500
Tvs Diodes datasheet and documents for MSMCG22CAE3
