MSPD1012-121

Overview

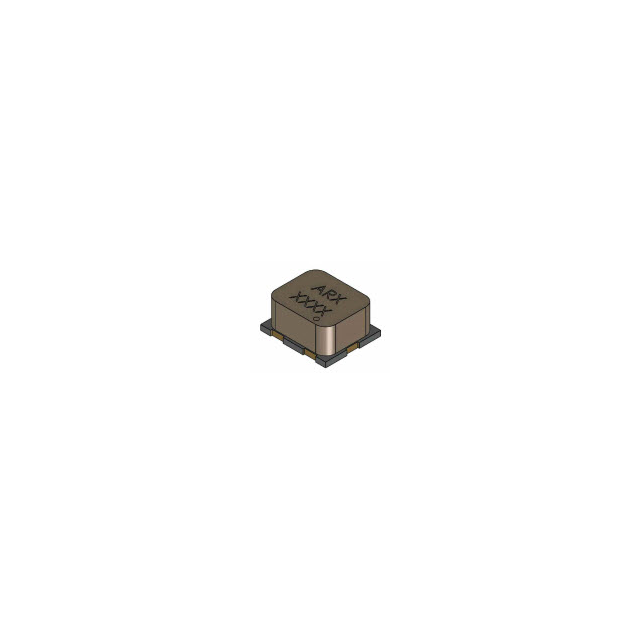

The MACOM MSPD1012-121 is a surface mount sampling phase detector module designed for general-purpose RF applications. It operates within a frequency range of 10MHz to 20GHz and utilizes the CS121 package configuration. This component is part of the ruggedized MSPD series, engineered for reliable performance in demanding environments.

Feature Summary

• Surface mount construction for automated assembly integration
• Sampling phase detection functionality across wide bandwidth
• Ruggedized design suitable for harsh operational conditions

Applications

• Military communication systems requiring high reliability
• Industrial radar signal processing architectures
• Commercial test and measurement instrumentation

Procurement Notes

Verify the specific suffix designation against official documentation to confirm exact electrical characteristics and pinout compatibility. Ensure that the selected variant matches the required frequency coverage and mounting specifications for the target application circuit design.

Selection Notes

Select this component when a wideband sampling phase detector is required for frequencies up to 20GHz. Consider the CS121 package constraints and surface mount requirements during PCB layout planning to ensure optimal signal integrity and thermal management for the hybrid manufacturing process.

Part Context

This device belongs to the MSPD series of sampling phase detectors manufactured by MACOM Technology Solutions. The family utilizes proven hybrid manufacturing techniques to deliver robust performance. These modules are specifically engineered to meet the stringent reliability standards required for aerospace and defense electronics applications.

Replacement Considerations

The MSPD1012-122 is a documented medium barrier variant within the same product family. Verify functional equivalence and interface compatibility before substitution.
