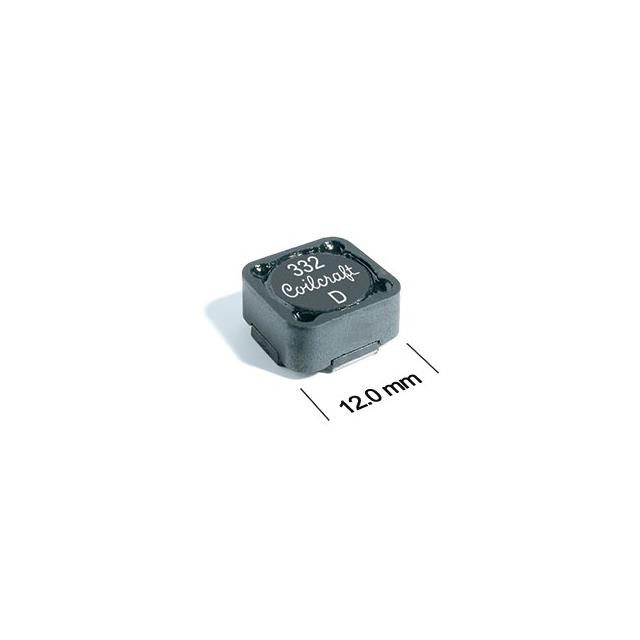

MSS1260-394KLD

$2.56

Description：FIXED IND 390UH 1.08A 533MOHM SM
Series：MSS1260
Mfr：Coilcraft
Package：Strip

SKU:c9014a2cba30 Category: Fixed Inductors Brand: Coilcraft

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MSS1260-394KLD is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Coilcraft. Its product description is FIXED IND 390UH 1.08A 533MOHM SM. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for MSS1260-394KLD

Description：FIXED IND 390UH 1.08A 533MOHM SM
Series：MSS1260
Mfr：Coilcraft
Package：Strip
Type：Drum Core
Material - Core：Ferrite
Inductance：390 µH
Tolerance：±10%
Current Rating (Amps)：1.08 A
Current - Saturation (Isat)：930mA
Shielding：Shielded
DC Resistance (DCR)：533mOhm Max
Q @ Freq：-
Frequency - Self Resonant：3.6MHz
Ratings：AEC-Q200
Operating Temperature：-40°C ~ 85°C
Inductance Frequency - Test：100 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)：0.244" (6.20mm)
Features：-

Fixed Inductors datasheet and documents for MSS1260-394KLD

MSS1260-394KLD

Fixed Inductors Overview

The Coilcraft MSS1260-394KLD is a shielded surface mount power inductor from the MSS1260 series, designed for automotive applications. It features a ferrite drum core and AEC-Q200 qualification. Key electrical parameters include an inductance of 390 µH with a 10% tolerance, a maximum DC current rating of 1.08 A, and a saturation current of 1.15 A. The component has a maximum DC resistance of 533 mOhms and operates within a temperature range of -40°C to +85°C. Its self-resonant frequency is 3.6 MHz. The physical dimensions are 12.3 mm x 12.3 mm x 6 mm.

Fixed Inductors Feature Summary

Shielded construction minimizes magnetic field interference
AEC-Q200 qualified for automotive reliability standards
Ferrite drum core design supports high-frequency operation

Fixed Inductors Applications

Automotive power supply circuits
DC-DC converter input/output filtering
On-board charger systems

Fixed Inductors Procurement Notes

Verify the specific suffix KLD against the manufacturer datasheet to confirm tolerance and packaging details. Ensure the application environment stays within the specified -40°C to +85°C operating range. Confirm that the required current does not exceed the 1.08 A maximum DC current or 1.15 A saturation current ratings to prevent performance degradation. Check for AEC-Q200 compliance requirements if used in certified automotive assemblies.

Fixed Inductors Selection Notes

Select this component when a shielded inductor with 390 µH nominal value is required for space-constrained automotive designs. The 1212 metric footprint allows for compact PCB layouts. Consider the 533 mOhms DCR for efficiency calculations in low-current applications. The AEC-Q200 qualification makes it suitable for strict automotive quality standards compared to general-purpose industrial inductors.

Fixed Inductors Part Context

This part belongs to the Coilcraft MSS1260 series of shielded power inductors. The series offers various inductance values tailored for automotive electronics. The MSS1260-394KLD specifically targets applications requiring moderate inductance with robust shielding. It complements other variants in the family that offer different current ratings and inductance levels while maintaining the same mechanical form factor.
