MSS6132-822MLC

Fixed Inductors Overview

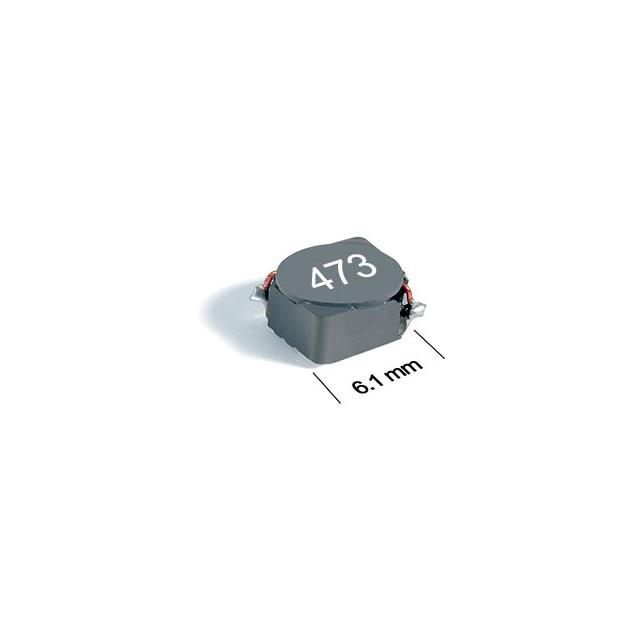

The Coilcraft MSS6132-822MLC is a shielded surface-mount power inductor featuring a ferrite core and a 6.1 mm x 6.1 mm footprint with a 3.2 mm height. It provides an inductance of 8.2 µH with a tolerance of ±20%. The component supports a maximum DC current of 2.65 A and has a maximum DC resistance of 55 mΩ. Saturation current is rated at 2.06 A, with a self-resonant frequency of 45 MHz. Operating temperatures range from -40°C to +125°C.

Fixed Inductors Feature Summary

• Magnetic shielding reduces electromagnetic interference and allows for closer component placement on the PCB.
• Ferrite core construction minimizes core losses while maintaining high efficiency under load.
• Robust matte tin over nickel terminations ensure reliable solderability and compliance with environmental standards.

Fixed Inductors Applications

• Automotive electronics systems requiring AEC-Q200 qualified components
• DC-DC converter circuits for power management
• General-purpose power filtering applications

Fixed Inductors Procurement Notes

Verify that the specific suffix 'LC' corresponds to the required termination plating configuration, as prior production versions may utilize gold plating. Confirm RoHS compliance status through official manufacturer documentation or authorized distributors before finalizing procurement plans. Ensure storage conditions adhere to specified temperature limits for tape and reel packaging.

Fixed Inductors Selection Notes

Select this component when a compact 6.1 mm square footprint is required alongside high current handling capabilities up to 2.65 A. The magnetic shielding makes it suitable for dense layouts where crosstalk must be minimized. Verify that the saturation current of 2.06 A meets the peak current demands of the target application circuit.

Fixed Inductors Part Context

This part belongs to the MSS6132 series of shielded SMD power inductors manufactured by Coilcraft. The series offers various inductance values within a consistent 6.1 mm x 6.1 mm package size. The MSS6132T variant denotes a different terminal configuration or packaging option within the same physical form factor family.

Fixed Inductors Replacement Considerations

Direct substitutes include other MSS6132 series variants such as MSS6132-123MTC or MSS6132-473MLC if different inductance values are acceptable. Cross-reference with MSS6132T-822MLC only if terminal specifications differ significantly.
