MSS6132T-104MLC

Fixed Inductors Overview

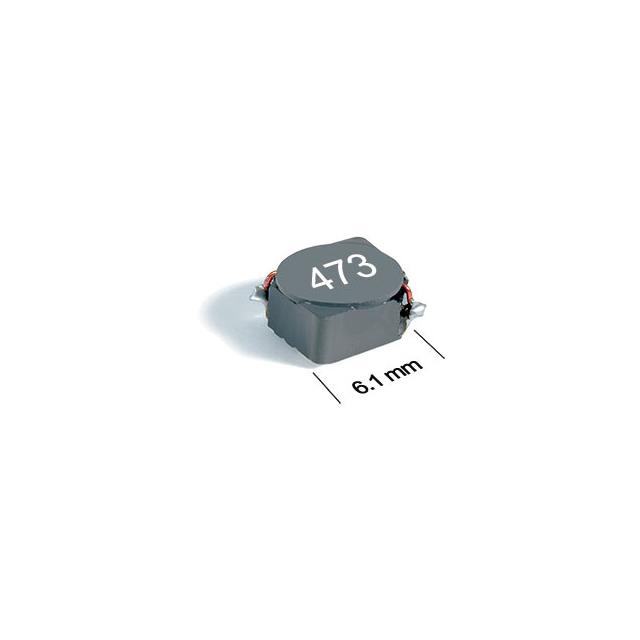

The Coilcraft MSS6132T-104MLC is a shielded surface-mount power inductor from the MSS6132T series, utilizing a ferrite core. It offers an inductance of 100 µH with a tolerance of ±20%. The component supports a maximum DC current of 0.69 A and features a maximum DC resistance of 660 mOhms. Its saturation current is rated at 0.58 A, with a self-resonant frequency of 7 MHz. Designed for robust operation, it functions within a temperature range of -40°C to +125°C. The physical dimensions are 6.1 mm in length, 6.1 mm in width, and 3.2 mm in height.

Fixed Inductors Feature Summary

• Shielded construction minimizes electromagnetic interference and magnetic flux leakage.
• Ferrite core material provides stable performance across wide temperature ranges.
• Automotive qualification ensures reliability under rigorous environmental conditions.

Fixed Inductors Applications

• Automotive power supply circuits
• DC-DC converter filtering
• General-purpose power electronics

Fixed Inductors Procurement Notes

Verify the specific suffix 'MLC' against official Coilcraft documentation to confirm package type and tape/reel specifications. Ensure that the selected variant meets the required automotive qualification standards if intended for vehicle applications. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and authenticity before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when a high-inductance value of 100 µH is required in a compact SMD footprint. Consider the low saturation current of 0.58 A for applications with limited peak current demands. The shielded design makes it suitable for noise-sensitive environments, while the AEC-Q200 qualification supports integration into automotive-grade systems requiring extended temperature stability.

Fixed Inductors Part Context

This inductor belongs to the MSS6132T series, which provides various inductance options within a standardized 2424 (6.1x6.1x3.2 mm) package. The series is designed for surface-mount technology, offering consistent mechanical profiles across different electrical values. This specific model represents the highest inductance option in the standard catalog, catering to applications needing significant energy storage in minimal space.

Fixed Inductors Replacement Considerations

• MSS6132T-104MJC

Fixed Inductors FAQ

Is the MSS6132T-104MLC qualified for automotive applications?

Yes, the MSS6132T series components are AEC-Q200 qualified, making them suitable for automotive electronic systems.

What is the saturation current for this inductor?

The saturation current is specified as 0.58 A, indicating the point where inductance drops significantly due to core saturation.
