MT112TB-RG-A

LED Indication - Discrete Overview

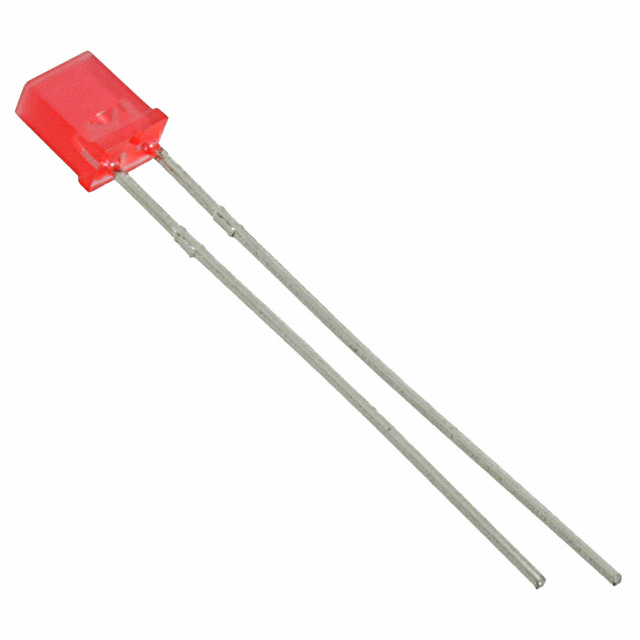

The MT112TB-RG-A is a single-color infrared emitter manufactured by Marktech Optoelectronics, designed for precision applications requiring a peak wavelength of 700nm. The component utilizes a radial package with rectangular dimensions of 4.00mm in length and 2.00mm in width, featuring a maximum height of 5.45mm. It employs a through-hole mounting style suitable for standard PCB layouts. The device is characterized by a red lens color and a flat-top rectangular lens style, ensuring consistent optical output for data communication and sensing tasks.

LED Indication - Discrete Feature Summary

• Provides precise infrared light emission at a 700nm peak wavelength
• Features a rectangular lens with a flat top design for directional control
• Utilizes a radial through-hole package for secure board integration

LED Indication - Discrete Applications

• Infrared data communication systems
• Optical sensing circuits
• Single-color LED indication modules

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm electrical characteristics such as forward voltage and current ratings prior to integration. Ensure the radial footprint matches the target PCB layout dimensions. Confirm that the 700nm wavelength aligns with the receiver sensitivity requirements of the intended application system.

LED Indication - Discrete Selection Notes

Select this component when a 700nm infrared source is required within a compact rectangular form factor. Consider the through-hole mounting requirement and physical dimensions of 4.00mm x 2.00mm against available board space. Evaluate compatibility with existing optical receivers tuned to the specified peak wavelength range.

LED Indication - Discrete Part Context

This part belongs to the Marktech Optoelectronics single-color LED category, specifically focusing on infrared emitters. It differs from other series by its specific 700nm wavelength and distinct rectangular lens geometry. The product line supports various optical communication needs with standardized packaging options.

LED Indication - Discrete Replacement Considerations

Consult official substitution lists for equivalent 700nm infrared emitters with matching radial packages. Verify dimensional compatibility and spectral response curves before replacing the original component in existing designs.

LED Indication - Discrete FAQ

What is the peak wavelength of the MT112TB-RG-A?

The peak wavelength is 700nm.

What is the lens shape of this component?

The lens is rectangular with a flat top.
