Product Detailed Parameters
- Description：MOD SCR DUAL 130A 1600V T2
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Bulk
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.6 kV
- Current - On State (It (AV)) (Max)：130 A
- Current - On State (It (RMS)) (Max)：-
- Current - Non Rep. Surge 50, 60Hz (Itsm)：4700A @ 50Hz
- Operating Temperature：-40°C ~ 130°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：T2
- Voltage - Gate Trigger (Vgt) (Max)：3 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：400 mA
- Grade：-
- Qualification：-
Download product information
Overview

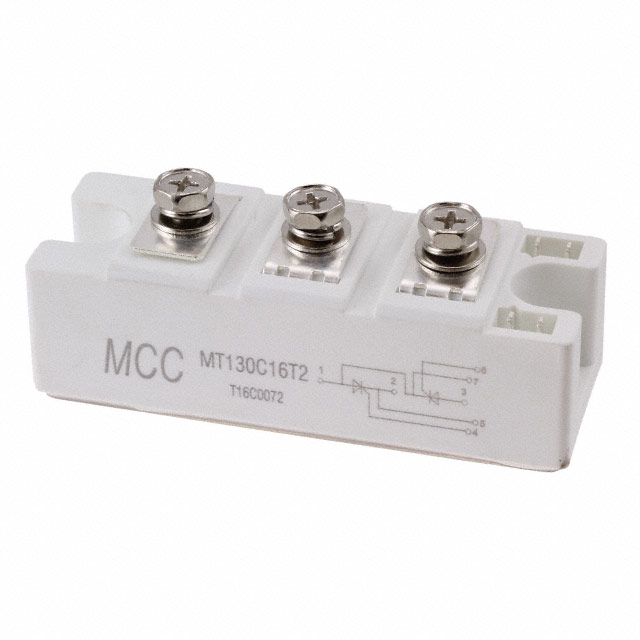

The MT130C16T2-BP is a silicon thyristor module manufactured by Micro Commercial Components (MCC). It features a T2 package with screw mount installation. The device supports a maximum repetitive peak off-state voltage of 1600V and an average on-state current of 130A. Key electrical parameters include a gate trigger current of 150 mA and a maximum holding current of 400 mA. It operates within a junction temperature range of -40°C to +130°C.
Feature Summary
- High power handling capability with 130A average on-state current rating
- Robust voltage blocking performance up to 1600V
- Designed for secure mechanical attachment via screw mount configuration
Applications
- Industrial motor drive systems
- Power supply rectification circuits
- Inverter bridge configurations
Procurement Notes
Verify the specific suffix BP against official MCC documentation to confirm compliance status and material composition. Ensure the T2 package dimensions match your thermal management design requirements. Cross-reference the 150mA gate trigger current with your driver circuit capabilities to guarantee reliable turn-on under all operating conditions.
Selection Notes
Select this component when a single-phase thyristor module with 1600V blocking voltage and 130A current capacity is required. The T2 package offers a standardized footprint for chassis mounting. Consider the 130°C maximum junction temperature limit when designing heat sinks for continuous operation in high-ambient environments.
Part Context
This part belongs to the MT130C16T2 series of thyristor modules from Micro Commercial Components. It is designed for general-purpose industrial applications requiring reliable phase control or rectification. The module integrates silicon technology within a robust encapsulation suitable for demanding electrical environments.
Replacement Considerations
Consult official MCC substitution guides for verified equivalents. Ensure any replacement matches the 1600V rating, 130A current capacity, and T2 package form factor.
