MT130CB16T2-BP

$65.25

Description：MOD SCR/DIODE 130A 1600V T2
Series：-

SKU:84236971d26b Category: SCRs - Modules Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOD SCR/DIODE 130A 1600V T2
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Tray
Structure：Series Connection - SCR/Diode
Number of SCRs, Diodes：1 SCR, 1 Diode
Voltage - Off State：1.6 kV
Current - On State (It (AV)) (Max)：130 A
Current - On State (It (RMS)) (Max)：-
Current - Non Rep. Surge 50, 60Hz (Itsm)：4700A @ 50Hz
Operating Temperature：-40°C ~ 125°C (TJ)
Mounting Type：Chassis Mount
Package / Case：T2
Voltage - Gate Trigger (Vgt) (Max)：3 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：400 mA
Grade：-
Qualification：-

Download product information

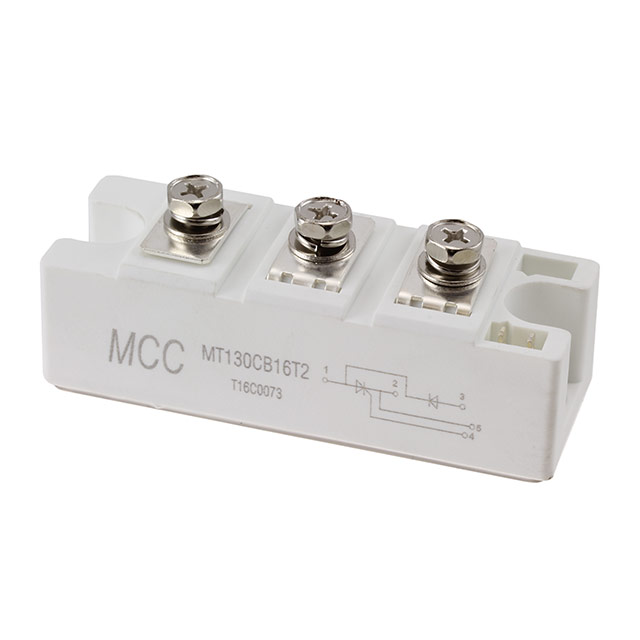

MT130CB16T2-BP

Overview

The MT130CB16T2-BP is a silicon thyristor module manufactured by Micro Commercial Components. It features a series connection of one SCR and one diode within a T2 package designed for screw mount installation. The device supports an average on-state current of 130 A and withstands a repetitive peak reverse voltage of 1.6 kV. Key electrical parameters include a maximum gate trigger current of 150 mA, a maximum gate trigger voltage of 3 V, and a holding current of 400 mA. The module operates within a junction temperature range of -40°C to +125°C.

Feature Summary

Integrates a single SCR and diode in a series-connected configuration for controlled rectification applications.
Utilizes a T2 screw-mount package structure suitable for robust mechanical attachment to heat sinks.
Engineered with silicon technology to maintain functionality across a wide operating temperature range.

Applications

Industrial motor drive systems requiring high-current control
Power supply units utilizing phase-controlled rectification
Resistive load heating controllers

Procurement Notes

Verify the specific part number MT130CB16T2-BP against official Micro Commercial Components documentation to confirm pinout compatibility and thermal characteristics. Ensure that the mounting hardware matches the T2 package requirements. Cross-reference datasheet specifications for gate trigger limits to validate circuit design integrity before procurement.

Selection Notes

Select this component when a combined SCR and diode solution is required in a compact T2 form factor. Consider the 130 A current rating and 1.6 kV blocking voltage relative to system demands. Evaluate the thermal management needs given the -40°C to +125°C operating range and the necessity for screw-mount installation methods.

Part Context

This module belongs to the MCC thyristor module lineup, specifically designed for power electronics applications. The T2 package designation indicates a standardized footprint for industrial power modules. The product represents a discrete semiconductor solution for managing high-power AC/DC conversion tasks within electronic circuits.
