MT25QL01GBBB8ESFE01-2SIT TR

Memory IC Overview

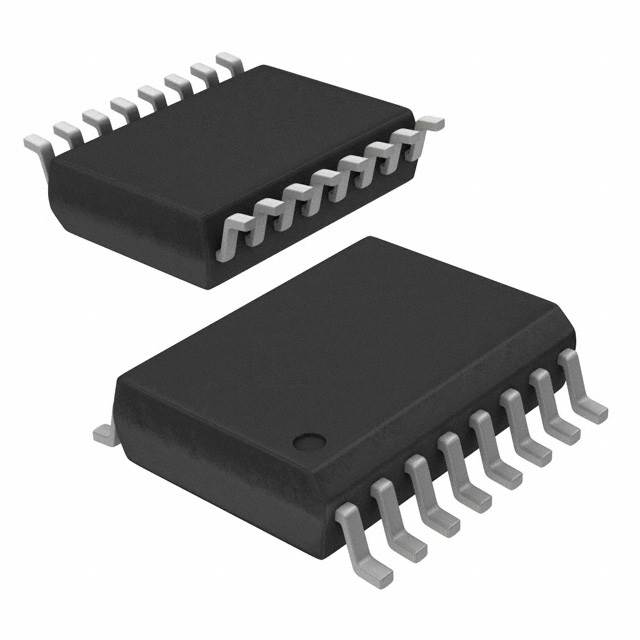

The MT25QL01GBBB8ESFE01-2SIT is a 1 Gbit Serial NOR Flash memory device manufactured by Micron Technology Inc. It features a 16-SOP2 package and operates within a supply voltage range of 2.7 V to 3.6 V. The device supports SPI interface with Quad I/O capabilities and achieves a maximum clock frequency of 133 MHz. Memory organization is structured as 128 M x 8 bits. It functions in synchronous timing mode and is rated for an operating temperature range from -40°C to +85°C.

Memory IC Feature Summary

• Supports SPI-compatible serial bus interface with Quad I/O commands for increased data throughput.
• Enables Execute-in-Place (XIP) operation for direct code execution from the flash memory.
• Includes PROGRAM/ERASE SUSPEND operations to allow non-disruptive read access during write cycles.

Memory IC Applications

• Firmware storage for embedded systems
• Code execution applications requiring XIP capability
• Industrial control systems operating in extended temperature ranges

Memory IC Procurement Notes

Verify the specific suffix 'E01' against official Micron documentation, as this variant is listed as discontinued in public distributor records. Confirm current availability status and lead times directly with authorized suppliers or the manufacturer, as standard stock may be limited due to end-of-life status.

Memory IC Selection Notes

Select this component when a 1 Gbit capacity is required in a 16-pin SOIC package with 3V operation. Ensure the design accommodates the 133 MHz maximum clock speed and the -40°C to +85°C industrial temperature range. Verify that the system architecture supports the specific Quad I/O protocol and XIP requirements defined for this series.

Memory IC Part Context

This part belongs to the Micron MT25QL family of Serial NOR Flash memories. It utilizes a stacked die architecture comprising two 512Mb dies to achieve the total 1 Gbit density. The device is designed for high-reliability applications requiring fast read speeds and robust data retention characteristics typical of Micron's NOR flash portfolio.

Memory IC Replacement Considerations

Public sources list the MT25QL01GBBB8ESFE01-2SIT as discontinued. Potential substitutes include other 1 Gbit 3V SPI NOR flashes in 16-SOP packages from Micron or compatible vendors, provided they match the pinout and electrical specifications.
