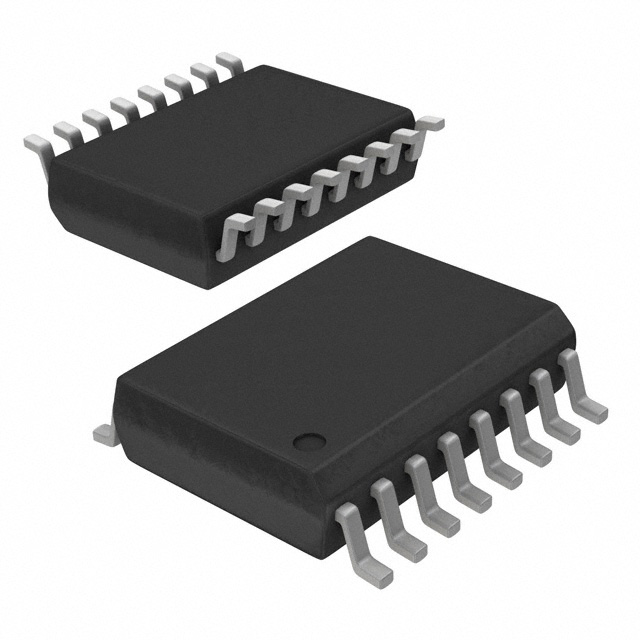

MT25QL256ABA8ESF-0AAT TR is listed in the Memory IC range at ChipApex. The manufacturer field lists Micron Technology Inc.. Its product description is IC FLASH 256MBIT SPI 133MHZ 16SO. Review the specifications below when checking this part for your BOM.
Memory IC specifications for MT25QL256ABA8ESF-0AAT TR
- Description：IC FLASH 256MBIT SPI 133MHZ 16SO
- Series：-
- Mfr：Micron Technology Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH - NOR
- Memory Size：256Mbit
- Memory Organization：32M x 8
- Memory Interface：SPI - Quad I/O
- Clock Frequency：133 MHz
- Write Cycle Time - Word, Page：8ms, 2.8ms
- Voltage - Supply：2.7V ~ 3.6V
- Operating Temperature：-40°C ~ 105°C (TA)
- Mounting Type：Surface Mount
- Package / Case：16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package：16-SO
- Access Time：-
- Grade：Automotive
- Qualification：AEC-Q100
Memory IC datasheet and documents for MT25QL256ABA8ESF-0AAT TR
Memory IC Overview
The Micron MT25QL256ABA8ESF-0AAT TR is a 256 Mbit Serial NOR Flash memory device featuring a SPI-compatible interface with dual and quad I/O support. It operates within a voltage range of 2.7 V to 3.6 V and supports clock frequencies up to 133 MHz in Single Transfer Rate (STR) mode. The device utilizes a 16-pin SOP2 package and provides an organization of 32 M x 8 bits. It includes features such as Execute-in-Place (XIP), software reset, and dedicated security registers for write protection.
Memory IC Feature Summary
- Supports Dual and Quad I/O commands for increased data throughput
- Includes Execute-in-Place (XIP) capability for direct code execution
- Features nonvolatile configuration settings and volatile lock bits
- Provides hardware write protection via nonvolatile Block Protect bits
Memory IC Applications
- Embedded systems requiring high-reliability code storage
- Industrial control applications needing sector-level protection
- Consumer electronics utilizing XIP for firmware execution
Memory IC Procurement Notes
Verify the specific ordering suffix against the manufacturer's current catalog to ensure compatibility with required pin configurations and temperature ranges. Confirm that the 16-pin SOP2 package matches the target PCB footprint. Check for any recent Product Change Notifications regarding material or assembly updates before finalizing procurement orders.
Memory IC Selection Notes
Select this component when a 256 Mbit density with 16-pin surface mount packaging is required. Ensure the system design accommodates the 2.7 V to 3.6 V supply voltage range. Verify that the host controller supports the necessary SPI protocols, including STR and DTR modes, to utilize the full performance capabilities of the device.
Memory IC Part Context
This part belongs to the Micron MT25Q family of Serial NOR Flash memories. It represents a second-generation device offering enhanced security features and multiple I/O options compared to earlier generations. The 'SF' designation specifically identifies the 16-pin SOP2 package variant within the broader product line.
Memory IC Replacement Considerations
MT25QL256ABA8E12-0AAT TR
