MT29F32G08AECBBH1-12:B

Memory IC Overview

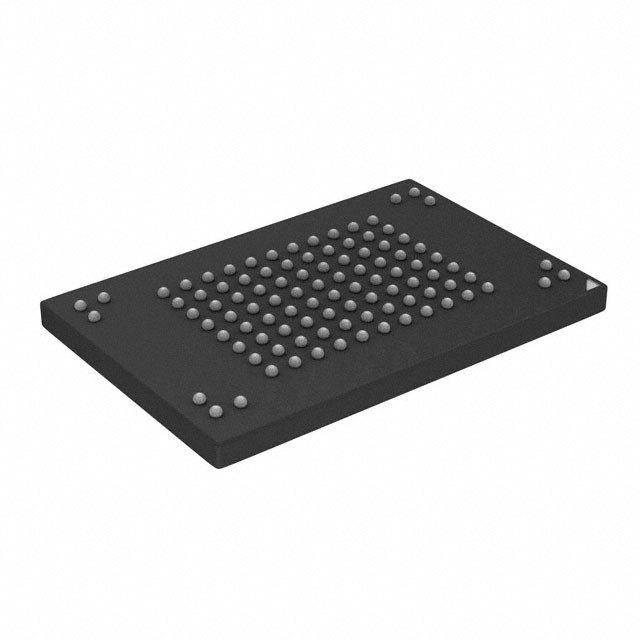

The Micron MT29F32G08AECBBH1-12:B is a non-volatile NAND flash memory integrated circuit with a storage capacity of 32Gb. It features a parallel interface and an organization of 4G x 8. The device operates within a supply voltage range of 2.7V to 3.6V and supports a clock frequency of 83 MHz. It is housed in a 100-VBGA package measuring 12x18 mm, designed for surface mount installation. The component functions reliably across a commercial temperature range of 0°C to 70°C.

Memory IC Feature Summary

• Supports ONFI-compliant parallel interface for data transfer
• Utilizes multi-level cell technology for high-density storage
• Includes advanced command sets such as program cache and copyback operations

Memory IC Applications

• Portable consumer electronics devices
• Embedded storage systems
• Industrial control equipment

Memory IC Procurement Notes

Verify the exact suffix against official Micron documentation to confirm pinout and electrical specifications. Confirm RoHS compliance status and moisture sensitivity level prior to assembly. Check for obsolescence notices or lifecycle changes. Ensure the supplier provides valid traceability documents. Validate that the specific variant matches the design requirements for voltage and timing modes.

Memory IC Selection Notes

Select this component when a 32Gb density with a 100-pin BGA footprint is required. Consider the 83 MHz synchronous operation speed for system bus matching. Evaluate the 0°C to 70°C operating range against environmental conditions. Compare the physical dimensions of the 12x18mm package against available PCB space constraints.

Memory IC Part Context

This part belongs to the Micron MT29F series of NAND flash memories. The series offers various densities and package options for embedded applications. The specific model utilizes asynchronous and synchronous I/O capabilities compliant with industry standards. It represents a solution for cost-effective mass storage in compact electronic designs.

Memory IC Replacement Considerations

Consult Micron datasheets for direct cross-references within the MT29F family. Verify compatibility of alternative packages such as TSOP or other BGA variants. Ensure substitute parts match the 4G x 8 organization and voltage requirements.
