MT29F64G08CECCBH1-12ITZ:C

Memory IC Overview

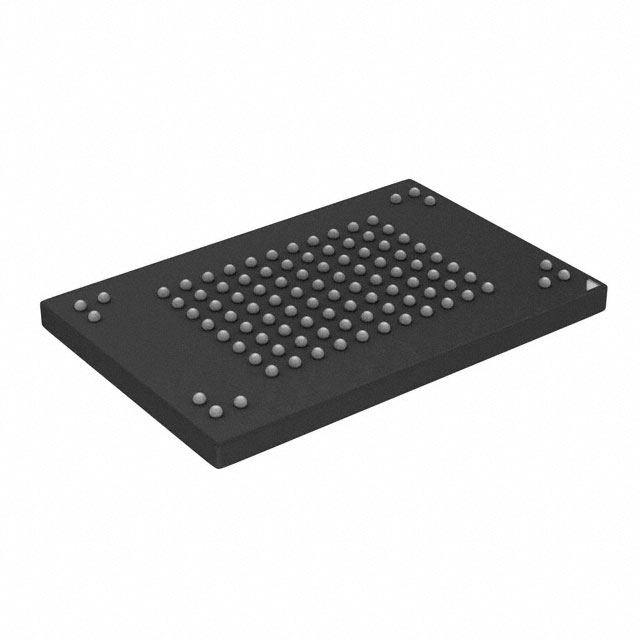

The MT29F64G08CECCBH1-12ITZ:C is a 64 Gbit SLC NAND flash memory device manufactured by Micron Technology. It features an 8 G x 8 organization with a parallel interface, supporting both asynchronous and synchronous timing modes. The component operates within a voltage range of 2.7 V to 3.6 V and supports clock frequencies up to 100 MHz in synchronous mode. It is housed in a 100-VBGA package and is qualified for industrial temperature ranges from -40°C to +85°C.

Memory IC Feature Summary

• Supports both asynchronous and synchronous operation modes for flexible system integration
• Utilizes Single-Level Cell (SLC) NAND technology for high endurance and reliability
• Industrial temperature qualification ensures stable performance in harsh environments

Memory IC Applications

• Industrial control systems requiring reliable non-volatile storage
• Embedded applications demanding high endurance data retention
• Automotive electronics operating under strict environmental conditions

Memory IC Procurement Notes

Verify the specific suffix ITZ:C against official Micron documentation to confirm synchronous capability and industrial grade status. Ensure compatibility with 100-VBGA footprints during PCB design. Confirm RoHS compliance and moisture sensitivity levels prior to assembly to prevent damage during soldering processes.

Memory IC Selection Notes

Select this component when synchronous interface speeds are required alongside industrial temperature resilience. Compare against asynchronous variants if lower power consumption at idle states is prioritized over peak transfer rates. Ensure the host controller supports the 8-bit data bus width and the specific command set defined in the datasheet.

Memory IC Part Context

This part belongs to the Micron MT29F series of NAND flash memories, designed for high-performance embedded storage. It complements other capacities in the family, offering a balance between density and speed suitable for firmware storage and data logging in robust electronic systems.

Memory IC Replacement Considerations

Direct replacements must match the 100-VBGA package and 64 Gbit capacity. Verify pinout compatibility with similar Micron parts like the MT29F64G08AECABH1-10ITZ:A, noting differences in timing specifications and supported clock frequencies.
