MT40A1G16KD-062E IT:E

Memory IC Overview

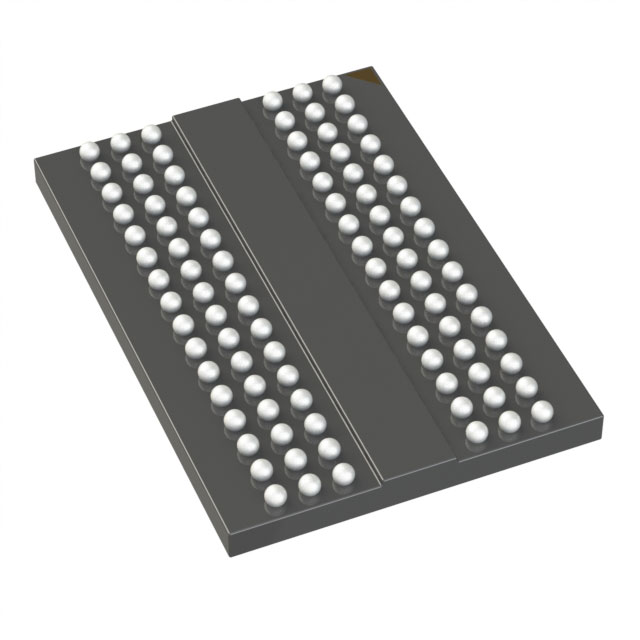

The MT40A1G16KD-062E IT:E is a Micron DDR4 SDRAM with a 16 Gbit capacity and 1G x 16 organization. It operates at a 3200 MT/s data rate (DDR4-3200) with a cycle time of 0.625ns and CAS latency of 22. The component uses a 96-ball FBGA package measuring 9mm x 13mm. It supports VDD = VDDQ = 1.2V ± 60mV and functions within an industrial temperature range of -40°C to +95°C.

Memory IC Feature Summary

• Supports programmable data strobe preambles and training for signal integrity
• Includes multipurpose register read/write capability for configuration
• Features on-die, internal, adjustable VREFDQ generation
• Provides command/address parity and databus write CRC for error detection

Memory IC Applications

• Industrial computing systems requiring extended temperature operation
• High-speed memory subsystems utilizing DDR4-3200 interfaces
• Embedded applications needing per-DRAM addressability

Memory IC Procurement Notes

Verify the specific die revision suffix against current Micron documentation to ensure compatibility with required features such as MBIST-PPR support. Confirm that the industrial temperature rating (-40°C to +95°C) aligns with system thermal design requirements before finalizing procurement specifications.

Memory IC Selection Notes

Select this part for designs requiring high-density 16Gb storage in a compact 96-ball FBGA footprint. Ensure the host controller supports DDR4-3200 timing parameters and provides necessary power sequencing for 1.2V operation. Verify PCB layout constraints match the 9mm x 13mm package dimensions.

Memory IC Part Context

This component belongs to the Micron MT40A1G16 family of 16Gb DDR4 SDRAMs. It shares architectural similarities with other variants in the series but is distinguished by its specific speed grade, package type, and industrial temperature rating. It is designed for parallel interface applications requiring high bandwidth.

Memory IC Replacement Considerations

Consult Micron's official obsolescence notices and cross-reference tools for verified substitute part numbers. Ensure any replacement maintains identical pinout, voltage levels, and timing parameters to guarantee electrical compatibility.
