MT40A512M8RH-083E IT:B TR

Memory IC Overview

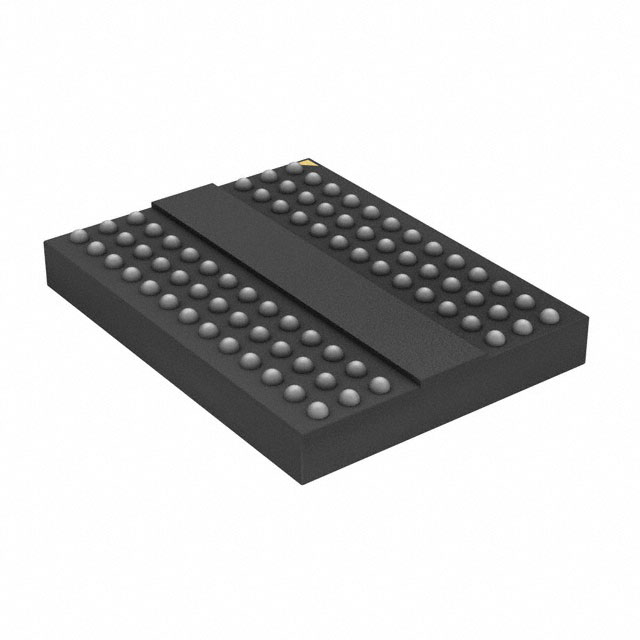

The Micron MT40A512M8RH-083E IT:B TR is a 4 Gbit DDR4 SDRAM component with a 512 Meg x 8 organization. It operates at a maximum clock frequency of 1.2 GHz (DDR4-2400) and utilizes a 78-ball FBGA package. The device supports a supply voltage range of 1.14 V to 1.26 V for both VDD and VDDQ, and functions within an operating temperature range of -40°C to +95°C.

Memory IC Feature Summary

• Supports per-DRAM addressability and post package repair modes for enhanced reliability.
• Includes data bus inversion and command/address parity features for improved signal integrity.
• Features low-power auto self refresh and temperature controlled refresh capabilities.

Memory IC Applications

• High-performance server memory systems
• Enterprise computing platforms
• Data center infrastructure

Memory IC Procurement Notes

Verify the specific ordering suffixes against official Micron documentation to confirm package revision and speed grade compatibility. Confirm current availability status as this component may be subject to end-of-life restrictions or limited distribution channels.

Memory IC Selection Notes

Select this component for designs requiring high-density 4 Gbit storage with an 8-bit interface width. Ensure the system layout accommodates the 78-ball FBGA footprint and that the controller supports DDR4-2400 timing parameters.

Memory IC Part Context

This part belongs to the Micron MT40A series of DDR4 SDRAM components. It represents a commercial-grade density option designed for parallel memory architectures requiring standardized JEDEC compliance and robust error correction support mechanisms.

Memory IC Replacement Considerations

Consult Micron catalogs for direct substitutes such as the MT40A512M8HX-083E IT:B TR, noting differences in package dimensions and revision codes before implementation.
