MT47H64M16BT-3:A TR

Memory IC Overview

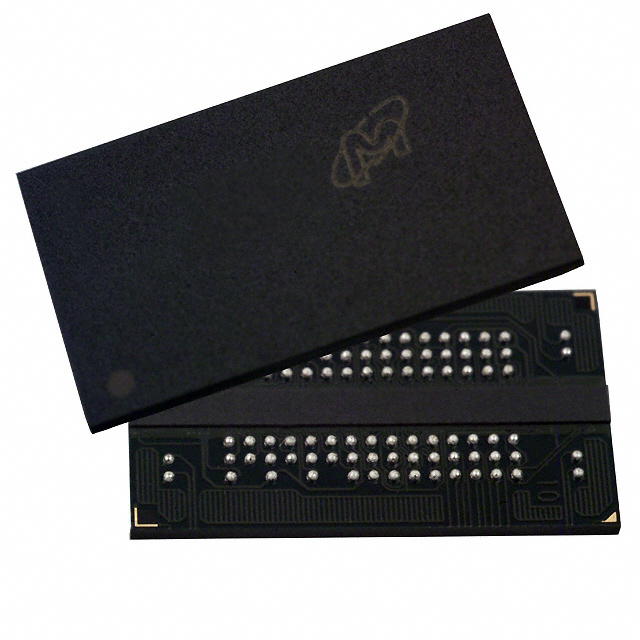

The Micron MT47H64M16BT-3:A TR is a 1 Gbit DDR2 SDRAM organized as 8 Meg x 16 with eight internal banks. It operates at a maximum clock frequency of 533 MHz (DDR2-533) with a cycle time of 3.75 ns at CAS latency 4. The device uses a 92-ball FBGA package and supports JEDEC-standard 1.8V I/O. Power supply requirements are VDD = +1.8V ±0.1V and VDDQ = +1.8V ±0.1V.

Memory IC Feature Summary

• Supports differential data strobe (DQS, DQS#) for improved signal integrity
• Features an on-die termination (ODT) mechanism to reduce reflections
• Includes a DLL to align data transitions with the clock signal
• Allows programmable CAS latency and posted additive latency

Memory IC Applications

• High-performance computing systems requiring 1.8V memory interfaces
• Embedded applications utilizing 92-ball FBGA surface-mount packaging
• Industrial equipment operating within specified temperature ranges

Memory IC Procurement Notes

Verify the specific speed grade suffix against current Micron documentation to ensure compatibility with system timing requirements. Confirm that the 92-ball FBGA footprint matches the target PCB layout. Check for RoHS compliance status in the latest datasheet revision before finalizing procurement specifications.

Memory IC Selection Notes

Select this component when a 16-bit wide interface is required for 1 Gbit capacity. Ensure the design accommodates the 1.8V power domain and SSTL_18 signaling standards. Consider the 92-ball FBGA package dimensions during mechanical integration and thermal management planning.

Memory IC Part Context

This part belongs to the Micron MT47HxMx family of DDR2 SDRAMs. It shares architectural features with other densities in the series, such as the MT47H256M4 and MT47H128M8. The family utilizes a common 4n-bit prefetch architecture and supports similar command sets and initialization sequences across different configurations.

Memory IC Replacement Considerations

Consult official Micron substitution guides for verified alternatives. Cross-reference pinouts and electrical characteristics carefully when evaluating potential replacements from other manufacturers.
