MT5470-UG

LED Indication - Discrete Overview

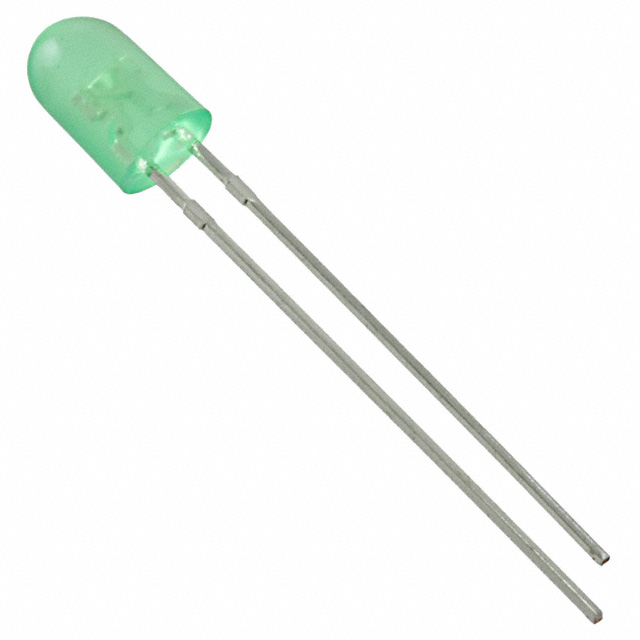

The MT5470-UG is a green diffused light-emitting diode manufactured by Marktech Optoelectronics. It utilizes a 5mm oval through-hole package configuration suitable for panel mounting. The component emits light at a peak wavelength of 525nm, providing clear visual indication in electronic circuits. The diffused lens design ensures uniform light distribution and reduced glare for operator visibility.

LED Indication - Discrete Feature Summary

• Green diffused optical output for enhanced visibility
• 5mm oval radial through-hole package design
• 525nm peak emission wavelength

LED Indication - Discrete Applications

• Circuit board status indication
• Panel-mounted equipment indicators
• General-purpose visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version from Marktech Optoelectronics to confirm electrical characteristics such as forward voltage and current ratings. Ensure the ordering suffix matches the required packaging or binning specifications. Cross-reference the pinout diagram with your PCB layout to guarantee correct orientation during assembly.

LED Indication - Discrete Selection Notes

Select this component when a standard green indicator with a diffused appearance is required for 5mm mounting holes. The oval shape may offer specific spatial advantages over round LEDs in constrained panels. Confirm that the operating current requirements align with the system's power supply capabilities and thermal management strategy.

LED Indication - Discrete Part Context

Marktech Optoelectronics specializes in optoelectronic components including LEDs and photodetectors. The MT5470-UG belongs to their discrete LED product line, designed for reliable performance in industrial and commercial applications. The company emphasizes engineering excellence in custom and standard optoelectronic solutions.

LED Indication - Discrete Replacement Considerations

Consult official cross-reference lists from Marktech Optoelectronics for verified substitutes. Generic replacements must match the 5mm oval form factor, green color, and diffused lens properties. Verify electrical compatibility before substitution.
