MT5470D-UY

LED Indication - Discrete Overview

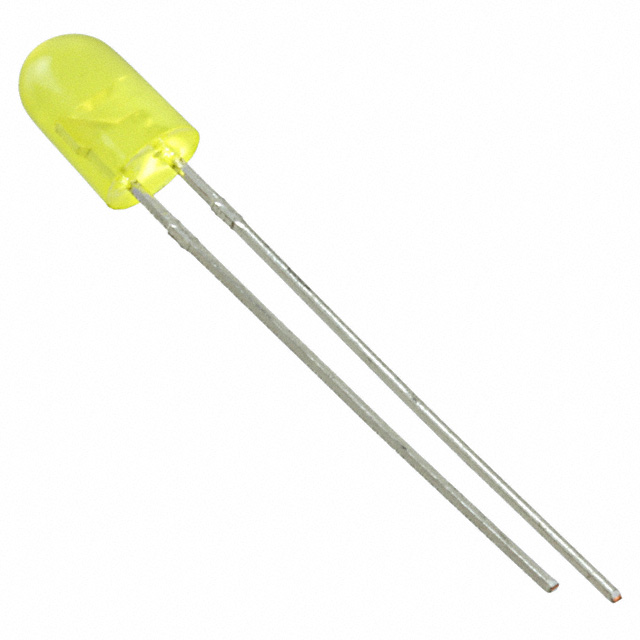

The MT5470D-UY is a single-color visible emitter manufactured by Marktech Optoelectronics. It features a yellow emission with a peak wavelength of 591nm and a dominant wavelength of 589nm. The component utilizes a plastic oval package measuring 5.2mm x 4.6mm. Key electrical parameters include a forward voltage of 2.1V at 20mA and a luminous intensity of 2000mcd (2 cd). Optical characteristics specify a viewing angle of 70/40 degrees and a spectral bandwidth of 15nm.

LED Indication - Discrete Feature Summary

• Yellow visible light emission for clear visual indication
• Compact oval through-hole package design
• High luminous intensity output

LED Indication - Discrete Applications

• General indicator lighting
• Automotive illumination
• Signage applications

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm exact dimensional tolerances and thermal characteristics. Ensure compatibility with standard through-hole mounting processes. Cross-reference official Marktech documentation for precise binning requirements regarding color consistency and forward voltage ranges before finalizing procurement specifications.

LED Indication - Discrete Selection Notes

Select this component when a compact, high-brightness yellow indicator is required. The oval form factor offers distinct visibility compared to standard round LEDs. Consider the 2.1V forward voltage drop for circuit design. Verify that the 70/40 degree viewing angle meets the line-of-sight requirements for the intended application environment.

LED Indication - Discrete Part Context

This part belongs to the MT5470 series of oval LED lamps produced by Marktech Optoelectronics. The series provides various color options within a consistent physical footprint. These components are designed for general lighting and indication purposes, offering a balance between size constraints and optical performance for discrete electronic assemblies.

LED Indication - Discrete Replacement Considerations

Direct substitutes may include other yellow oval LEDs from different manufacturers with matching 5.2x4.6mm dimensions and similar 2.1V forward voltage. Verify angular distribution and intensity levels to ensure equivalent visual performance in the target assembly.
