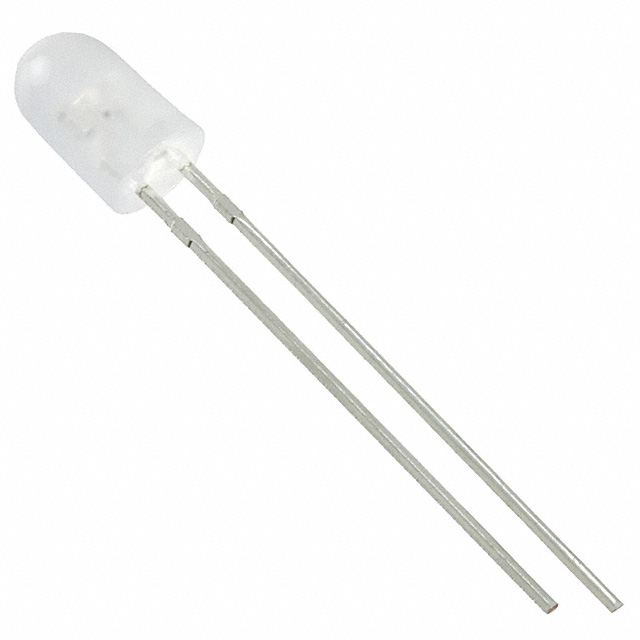

MT5470E-OR is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Marktech Optoelectronics. Its product description is LED AMBER DIFFUSED 5MM OVAL T/H. Review the specifications below when checking this part for your BOM.
LED Indication - Discrete specifications for MT5470E-OR
- Description：LED AMBER DIFFUSED 5MM OVAL T/H
- Series：-
- Mfr：Marktech Optoelectronics
- Package：Bulk
- Color：Amber
- Configuration：Standard
- Lens Color：White
- Lens Transparency：Diffused
- Millicandela Rating：3000mcd
- Lens Style：Oval with Domed Top
- Lens Size：5.20mm x 4.60mm
- Voltage - Forward (Vf) (Typ)：2.1V
- Current - Test：20mA
- Viewing Angle：60°, 40°
- Mounting Type：Through Hole
- Wavelength - Dominant：605nm
- Wavelength - Peak：610nm
- Features：-
- Package / Case：Radial
- Supplier Device Package：5mm Oval
- Size / Dimension：-
- Height (Max)：8.30mm
- Grade：-
- Qualification：-
LED Indication - Discrete datasheet and documents for MT5470E-OR
LED Indication - Discrete Overview
The MT5470E-OR is a single-color amber LED emitter manufactured by Marktech Optoelectronics. It features a 605nm dominant wavelength and utilizes a 5mm oval diffused lens design. The component operates with a typical forward voltage of 2.1V and is constructed for through-hole mounting applications. This discrete indicator provides reliable visual signaling suitable for various electronic equipment interfaces.
LED Indication - Discrete Feature Summary
- Amber light emission at 605nm wavelength
- Oval diffused lens configuration
- Through-hole radial package construction
LED Indication - Discrete Applications
- Circuit board status indication
- Panel mount visual signaling
- Electronic device power indicators
LED Indication - Discrete Procurement Notes
Verify the specific datasheet version to confirm exact electrical tolerances and thermal characteristics before integration. Ensure that the through-hole footprint matches the target PCB layout requirements. Confirm compatibility with wave soldering processes if applicable to the manufacturing workflow.
LED Indication - Discrete Selection Notes
Select this component when an amber visual indicator with a 605nm wavelength is required. The oval diffused lens shape provides a specific viewing angle profile suitable for panel applications. Consider the 2.1V forward voltage requirement for circuit design compatibility.
LED Indication - Discrete Part Context
This part belongs to the Marktech Optoelectronics discrete LED family, designed for general-purpose indication tasks. The MT5470E-OR variant specifically addresses applications requiring amber light output in a standard 5mm form factor. It serves as a fundamental component for visual status monitoring in consumer and industrial electronics.
LED Indication - Discrete Replacement Considerations
Cross-reference with other 5mm oval amber LEDs from different manufacturers if supply constraints exist. Verify that substitute components match the 605nm wavelength and 2.1V forward voltage specifications to ensure functional equivalence.
