MT5470E-UR

$0.59

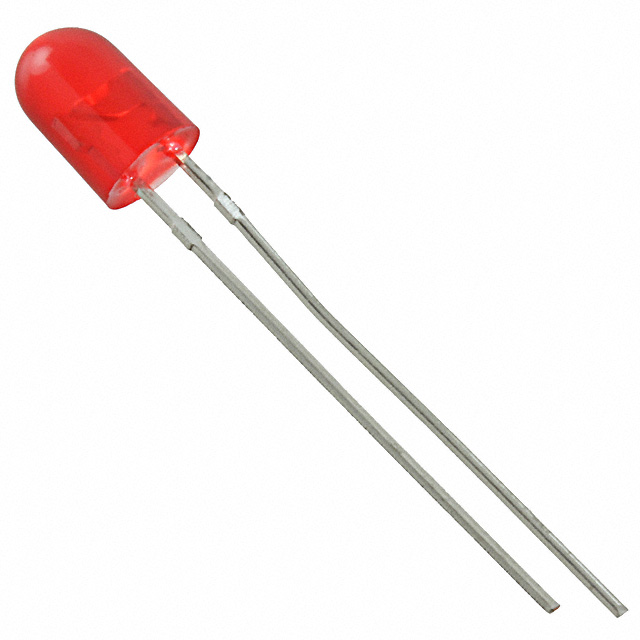

Description：LED RED DIFFUSED 5MM OVAL T/H
Series：-
Mfr：Marktech Optoelectronics
Package：Bulk

SKU:d027c451f7b0 Category: LED Indication - Discrete Brand: Marktech Optoelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MT5470E-UR is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Marktech Optoelectronics. Its product description is LED RED DIFFUSED 5MM OVAL T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for MT5470E-UR

Description：LED RED DIFFUSED 5MM OVAL T/H
Series：-
Mfr：Marktech Optoelectronics
Package：Bulk
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Diffused
Millicandela Rating：2300mcd
Lens Style：Oval with Domed Top
Lens Size：5.20mm x 4.60mm
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：70°, 40°
Mounting Type：Through Hole
Wavelength - Dominant：625nm
Wavelength - Peak：632nm
Features：-
Package / Case：Radial
Supplier Device Package：5mm Oval
Size / Dimension：-
Height (Max)：8.30mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for MT5470E-UR

MT5470E-UR

LED Indication - Discrete Overview

The Marktech Optoelectronics MT5470E-UR is a single-color visible emitter featuring a red diffused lens and oval shape. It operates with a forward current of 20 mA and a typical forward voltage of 2.1 V. The component emits at a dominant wavelength of 625 nm to 632 nm, providing a luminous intensity of 2300 mcd. It utilizes through-hole mounting in a 5.2 mm x 4.6 mm package.

LED Indication - Discrete Feature Summary

High-brightness red emission suitable for clear visual indication
Diffused oval lens design for wide viewing angles
Standard radial lead configuration for easy integration

LED Indication - Discrete Applications

Electronic indicator lights
Signaling devices
Fiber optic communication systems
Display technologies
Medical imaging equipment

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version to confirm exact wavelength tolerances and luminous intensity binning requirements. Ensure that the through-hole footprint dimensions align with the target PCB layout. Confirm moisture sensitivity handling procedures are followed during assembly to maintain device reliability and performance standards.

LED Indication - Discrete Selection Notes

Select this component when a high-intensity red visual signal is required in space-constrained designs due to its compact oval form factor. Consider the 2.1 V forward voltage drop for power supply calculations. Evaluate the 2300 mcd output against ambient lighting conditions to ensure adequate visibility for the intended application environment.

LED Indication - Discrete Part Context

This part belongs to the Marktech Optoelectronics discrete LED family, focusing on visible emitters for industrial and consumer electronics. It complements other single-color LEDs by offering a specialized oval geometry and diffused optical profile, distinguishing it from standard cylindrical or rectangular LED packages within the manufacturer's catalog.
