MT6224-AHRG-A

LED Indication - Discrete Overview

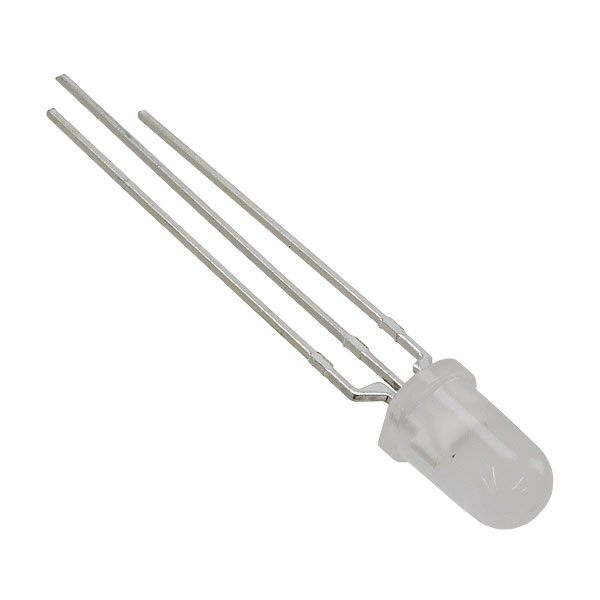

The MT6224-AHRG-A is a 5mm (CC) bi-color tri-state LED lamp manufactured by Marktech Optoelectronics. It features a white diffused lens and utilizes three leads for independent control of red and green chips. The component operates with low current requirements and is compatible with standard integrated circuits. Designed for through-hole mounting, it provides reliable performance in rugged environments suitable for indicator applications.

LED Indication - Discrete Feature Summary

• Bi-color LED construction with independent red and green emission channels
• White diffused lens design for uniform light distribution
• Three-lead tri-state configuration enabling multiple color combinations
• Low current operation compatible with standard logic interfaces

LED Indication - Discrete Applications

• Status indicators on electronic equipment panels
• Multi-state signaling in industrial control systems
• Visual feedback components in consumer electronics
• Instrumentation panel lighting

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm lens type and binning. Ensure compatibility with existing PCB footprints for the 5mm CC package. Confirm that the tri-state pinout matches the circuit design requirements before procurement.

LED Indication - Discrete Selection Notes

Select this component when multi-color status indication is required within a single package footprint. The tri-state capability allows for distinct visual signals without increasing board space. Consider the white diffused lens for applications requiring broad visibility angles.

LED Indication - Discrete Part Context

This part belongs to the MT6224 series of 3-leaded tri-state LED lamps from Marktech Optoelectronics. These components are designed as direct replacements or upgrades for traditional dual-color LEDs, offering enhanced signaling capabilities through independent chip control within a standard 5mm form factor.

LED Indication - Discrete Replacement Considerations

Compatible substitutes include other 5mm bi-color tri-state LEDs from various manufacturers. Verify pinout alignment and forward voltage characteristics to ensure electrical compatibility during replacement.
