MT6691SVP/A

Voltage Regulators - DC DC Switching Regulators Overview

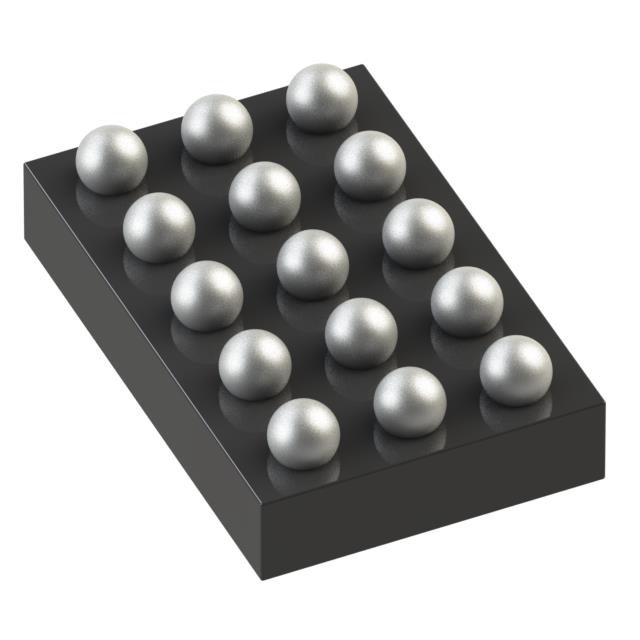

The MediaTek MT6691SVP/A is a synchronous step-down DC/DC converter designed for the Genio 1200 platform, specifically regulating LPDDR4X VDDQ. It delivers a maximum output current of 3A with an adjustable voltage range from 0.27V to 1.4V. The device operates at a fixed switching frequency of 2.4 MHz and accepts an input voltage between 2.5V and 5.5V. It features ACOT control topology and I2C interface for configuration. The component is housed in a 15-WLCSP package measuring 1.31x2.02 mm and supports operation within a temperature range of -40°C to 85°C.

Voltage Regulators - DC DC Switching Regulators Feature Summary

• Implements Adaptive Constant On-Time (ACOT) control topology for transient response optimization
• Integrates I2C interface for programmable voltage and operational parameter adjustment
• Utilizes synchronous rectification to enhance conversion efficiency under load
• Designed as a dedicated power stage for LPDDR4X memory subsystems

Voltage Regulators - DC DC Switching Regulators Applications

• LPDDR4X VDDQ power supply regulation
• MediaTek Genio 1200 System on Chip (SoC) power management
• Portable computing devices requiring low-voltage high-current rails
• Embedded systems utilizing Genio series processors

Voltage Regulators - DC DC Switching Regulators Procurement Notes

Verify the specific suffix 'SVP' against official datasheets to confirm the intended application variant, as other suffixes like 'OOP' or 'ZXP' exist within the same family for different voltage requirements. Ensure compatibility with the target PCB footprint for the 15-WLCSP package. Confirm that the design supports the required 2.4 MHz switching frequency and I2C communication protocols before finalizing procurement.

Voltage Regulators - DC DC Switching Regulators Selection Notes

Select this component when designing for the Genio 1200 ecosystem requiring a dedicated 3A rail for LPDDR4X memory. Choose this part over alternatives if the application strictly requires the 0.27V-1.4V output range and 2.4 MHz frequency. Consider thermal dissipation capabilities inherent to the WLCSP form factor. Validate that the input voltage range of 2.5V to 5.5V aligns with the system's primary power source.

Voltage Regulators - DC DC Switching Regulators Part Context

This component belongs to the MediaTek Genio series Power Management Integrated Circuits (PMIC). It serves as a specialized power stage within the broader Genio 1200 solution, complementing other regulators such as the MT6680P/A LDO. The MT6691 series addresses the specific power delivery needs of modern mobile and IoT processors, focusing on memory subsystem stability and efficiency.

Voltage Regulators - DC DC Switching Regulators Replacement Considerations

Official parameter-equivalent substitutes include the MT6691OOP/A and MT6691ZXP/A. Verify that these alternatives match the specific voltage and current requirements of the design, as they may target different memory types or voltage rails within the Genio family.
