MTFC64GAZAQHD-WT

Memory IC Overview

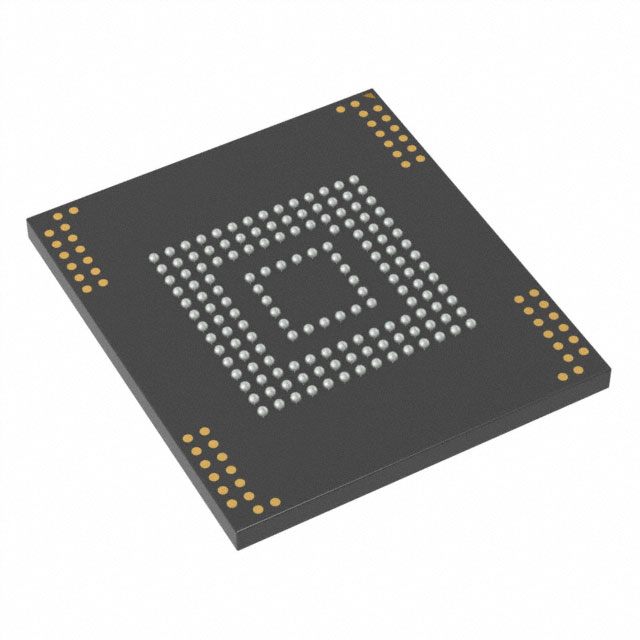

The Micron MTFC64GAZAQHD-WT is a 64 GB embedded multimedia card (eMMC) utilizing TLC NAND configuration. It supports the eMMC 5.1 specification with HS400 interface, delivering sequential read speeds of 320 MB/s and write speeds of 215 MB/s. The component operates within a voltage range of 2.7 V to 3.6 V and functions in temperatures from -25°C to +85°C. It is housed in a VFBGA-153 package measuring 13 mm x 11.5 mm x 0.9 mm.

Memory IC Feature Summary

• Supports eMMC 5.1 protocol with HS400 high-speed interface for enhanced data throughput.
• Utilizes Triple-Level Cell (TLC) NAND technology for high-density storage.
• Designed for industrial-grade operation across extended temperature ranges.

Memory IC Applications

• Industrial applications requiring robust storage solutions
• Wireless infrastructure equipment
• IP video security surveillance systems

Memory IC Procurement Notes

Verify current availability status as the component may be subject to discontinuation or limited supply. Confirm RoHS compliance details and moisture sensitivity levels prior to procurement. Ensure compatibility with existing system voltage requirements and thermal management capabilities for the specified operating temperature range.

Memory IC Selection Notes

Select this component for designs requiring 64 GB capacity with industrial temperature ratings. Compare against the IT variant if wider temperature tolerance (-40°C to +95°C) is required. Ensure PCB layout accommodates the VFBGA-153 footprint and signal integrity requirements for HS400 interfaces.

Memory IC Part Context

This part belongs to Micron's eMMC family, specifically designed for mobile and industrial markets. It integrates controller and NAND flash into a single package. The WT suffix typically denotes the commercial/industrial temperature grade, distinguishing it from other variants like IT which may offer extended temperature ranges.

Memory IC Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consider verifying equivalent components from the same manufacturer family, such as the MTFC64GAZAQHD-IT, noting differences in operating temperature specifications.
