MTH302548AH-25.000MHZ-T

Oscillators Overview

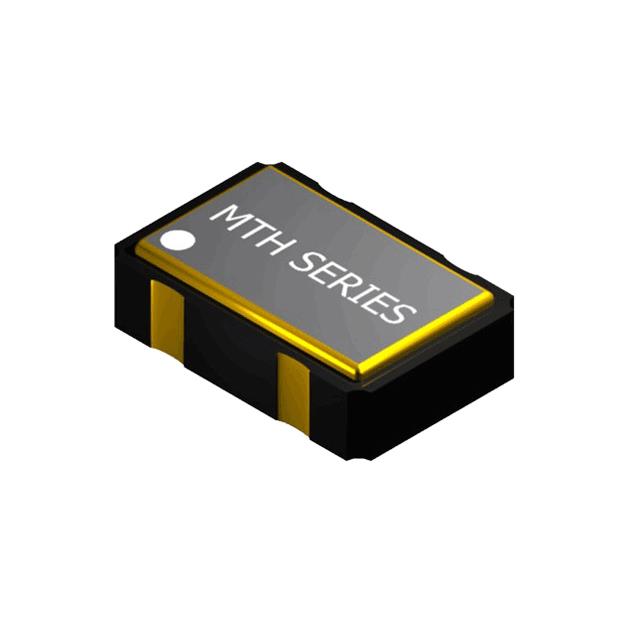

The MTH302548AH-25.000MHZ-T is a standard clock oscillator manufactured by MMD, operating at a nominal frequency of 25 MHz. It features an HCMOS output format and requires a supply voltage of 3.3 V. The device supports enable/disable functionality and is housed in a 4-pad ceramic surface-mount package measuring 5.0 mm x 3.2 mm. It operates within a temperature range of -40°C to +85°C with a frequency stability of 25 ppm.

Oscillators Feature Summary

• HCMOS output signal format for digital logic compatibility
• Integrated enable and disable control capability
• Compact 4-pad ceramic surface-mount construction

Oscillators Applications

• Standard clock generation for digital systems
• Timing reference for microprocessors
• Clock source for communication interfaces

Oscillators Procurement Notes

Verify the manufacturer designation carefully, as the component is associated with both MMD and Abracon branding in distribution channels. Confirm the specific part number suffix matches the required electrical specifications. Ensure the ordering documentation explicitly references the 3.3V HCMOS variant to avoid confusion with other voltage or output types within the series. Cross-reference the datasheet provided by the supplier to confirm the enable/disable feature availability.

Oscillators Selection Notes

Select this component when a 25 MHz timing source with HCMOS compatibility is required. The 3.3V supply voltage must align with the target system's power rails. Consider the 4-pad ceramic package dimensions for PCB layout constraints. Verify that the 25 ppm frequency stability meets the application's timing accuracy requirements. Ensure the enable/disable pin functionality is utilized if power management during idle states is necessary.

Oscillators Part Context

This oscillator belongs to the MTH series of standard crystal oscillators. It is designed for surface-mount applications requiring precise timing signals. The series typically offers various frequencies and voltage options, with this specific model providing a 25 MHz output at 3.3V. It serves as a fundamental timing element in electronic circuits requiring stable clock references.

Oscillators Replacement Considerations

Direct substitutes may include other 25 MHz HCMOS oscillators from the same manufacturer family with identical pinout and voltage specifications. Verify compatibility with any alternative part regarding frequency stability, package dimensions, and enable/disable functionality before implementation.
