MTH305027AH-50.000MHZ-T

Oscillators Overview

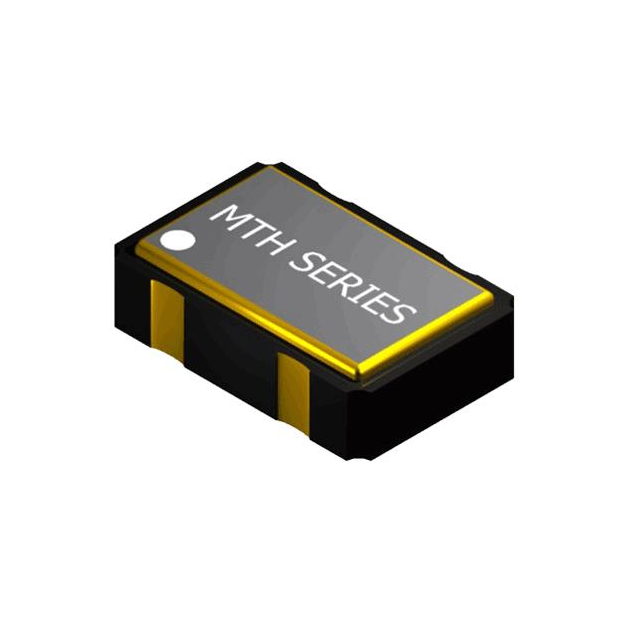

The MTH305027AH-50.000MHZ-T is a surface-mount crystal oscillator (XO) from the MMD MTH series, operating at a nominal frequency of 50 MHz with HCMOS output logic. It features a frequency stability of 50 ppm and operates on a single 3.3V supply voltage. The device utilizes a 4-pin SMD package measuring 5.0mm x 3.2mm x 1.6mm. It supports an operating temperature range of -20°C to +70°C and includes a load capacitance specification of 30pF.

Oscillators Feature Summary

• HCMOS output waveform for digital circuit compatibility
• Surface mount construction for automated assembly
• Integrated enable/disable functionality via control pin

Oscillators Applications

• General-purpose clock signal generation in embedded systems
• Timing reference for microcontrollers and processors
• Data communication interface synchronization

Oscillators Procurement Notes

Verify the exact part number suffix against official MMD documentation to confirm electrical specifications and packaging details. Ensure that the required frequency tolerance and operating temperature range align with the target application environment before procurement. Cross-reference the package dimensions with the PCB footprint library to guarantee mechanical compatibility during design integration.

Oscillators Selection Notes

Select this component when a standard 50MHz clock source with HCMOS levels is required for space-constrained designs. Consider the 50 ppm stability requirement relative to system timing accuracy needs. Evaluate the 3.3V supply constraint against available power rails. Confirm that the -20°C to +70°C industrial temperature range meets operational conditions without requiring extended grade alternatives.

Oscillators Part Context

This oscillator belongs to the MMD MTH series, which provides industry-standard packaged surface-mount oscillators. The series offers various frequencies and stability options within a compact form factor. The specific model integrates the quartz resonator and oscillator circuit into a single hermetically sealed or epoxy-molded package suitable for high-volume manufacturing processes.

Oscillators Replacement Considerations

Direct substitutes include other MMD models within the MTH series offering identical 50MHz frequency and 4-pin SMD packaging. Verify pinout compatibility and electrical parameters such as supply voltage and output logic levels when considering cross-manufacturer replacements.
