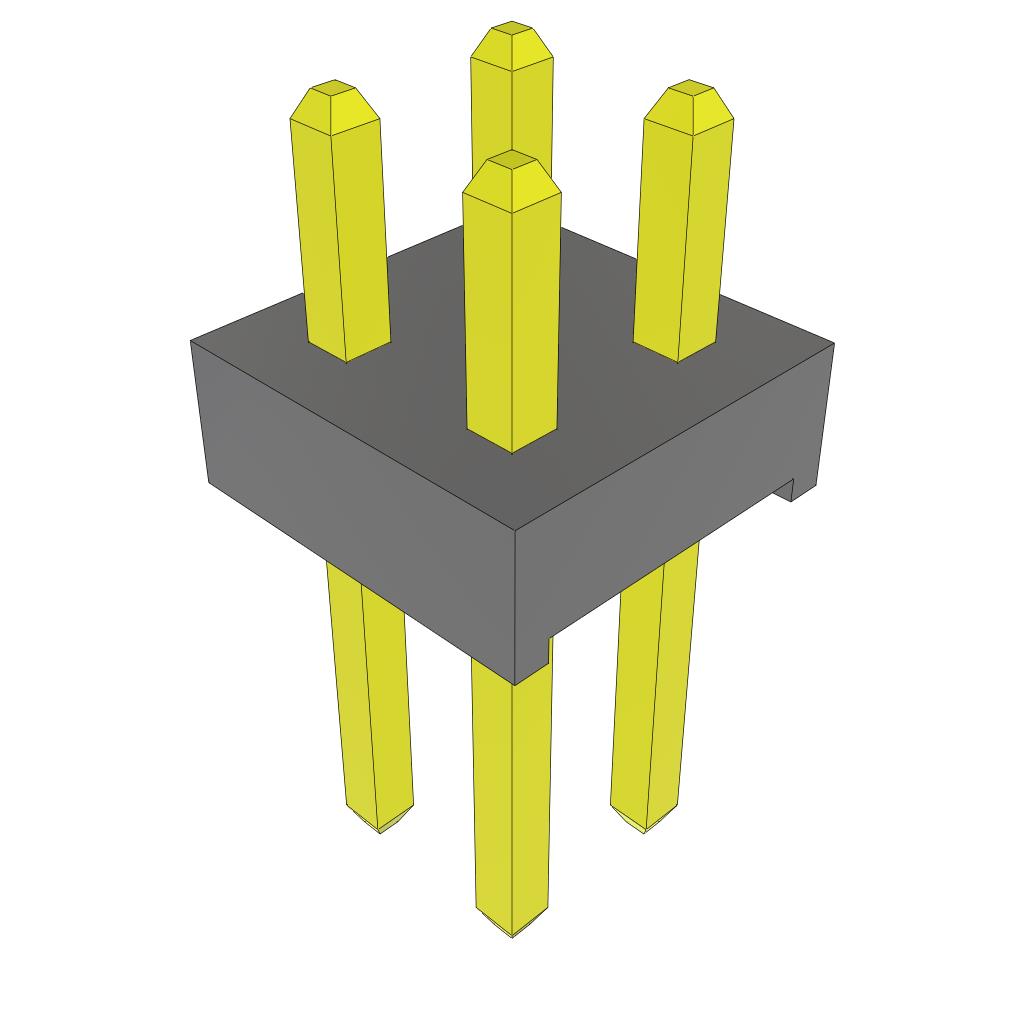

MTMM-102-04-F-D-090

$0.63

Description：CONN HEADER VERT 4POS 2MM
Series：MTMM
Mfr：Samtec Inc.
Package：Bulk

SKU:9679f8ff0391 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MTMM-102-04-F-D-090 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 4POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MTMM-102-04-F-D-090

Description：CONN HEADER VERT 4POS 2MM
Series：MTMM
Mfr：Samtec Inc.
Package：Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.079" (2.00mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.090" (2.29mm)
Contact Length - Post：0.174" (4.42mm)
Overall Contact Length：0.323" (8.20mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.00µin (0.076µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for MTMM-102-04-F-D-090

MTMM-102-04-F-D-090

Headers, Male Pins Overview

The Samtec MTMM-102-04-F-D-090 is a variable post height header strip featuring a 2.00 mm (0.079 inch) pitch. It provides four positions across two rows with male pin contacts designed for through-hole termination. The connector utilizes phosphor bronze terminals with gold plating and liquid crystal polymer insulation rated UL 94 V-0. It supports a maximum current of 3.2 amperes per contact and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

Flex stack design allows modified post height and body position in 0.005 inch increments
Variable post height capability enables customization for specific application requirements
Low profile construction suitable for space-constrained board stacking applications

Headers, Male Pins Applications

Board-to-board interconnections requiring flexible stacking heights
High-density electronic assemblies utilizing low profile connectors
Automotive A-series product configurations

Headers, Male Pins Procurement Notes

Verify the exact mating post length required for your assembly, as the suffix indicates a specific height configuration. Confirm that the through-hole footprint matches your PCB design guidelines. Ensure compatibility with mating connectors using standard 0.020 inch square posts. Check RoHS compliance status if restricted substances are a concern for your manufacturing process.

Headers, Male Pins Selection Notes

Select this component when variable post height flexibility is necessary for board stacking or offset connections. The two-row configuration offers higher density compared to single-row alternatives. Verify that the 3.2 ampere current rating meets the electrical requirements of the signal lines. Consider the mechanical stability provided by the flex stack design during assembly.

Headers, Male Pins Part Context

This part belongs to the MTMM series of variable post height header strips manufactured by Samtec Inc. The series provides extensive customization options for pin counts, terminal lengths, and row configurations up to four rows. These connectors are designed for through-hole termination and offer significant flexibility in mechanical positioning.
