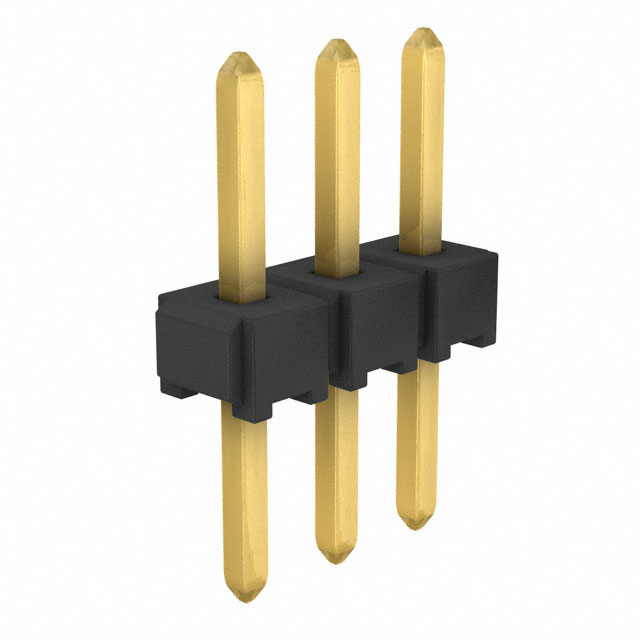

MTMM-103-04-G-S-137

$0.83

Description：CONN HEADER VERT 3POS 2MM
Series：MTMM
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:21ebc4e253fe Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MTMM-103-04-G-S-137 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 3POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MTMM-103-04-G-S-137

Description：CONN HEADER VERT 3POS 2MM
Series：MTMM
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.079" (2.00mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.137" (3.48mm)
Contact Length - Post：0.127" (3.23mm)
Overall Contact Length：0.323" (8.20mm)
Insulation Height：0.059" (1.50mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：20.0µin (0.51µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for MTMM-103-04-G-S-137

MTMM-103-04-G-S-137

Headers, Male Pins Overview

The Samtec MTMM-103-04-G-S-137 is a variable post height header strip featuring a 2 mm (0.079 in) pitch and three positions in a single row. Designed for through-hole mounting with straight installation, it utilizes phosphor bronze contacts with gold plating. The component operates within a temperature range of -55°C to +125°C and employs liquid crystal polymer insulation rated UL 94 V-0.

Headers, Male Pins Feature Summary

Variable post height design allows customization of pin length to accommodate specific board stacking requirements.
Elastic stacking capability enables adjustment of pin posture with minimal tolerance variation.

Headers, Male Pins Applications

Board-to-board interconnections
High-density electronic assemblies
Custom connector configurations

Headers, Male Pins Procurement Notes

Verify the exact ordering suffix against official documentation to ensure correct pin height and termination specifications. Confirm RoHS compliance status and material certifications prior to integration. Cross-reference datasheet revisions to validate current manufacturing parameters and availability constraints.

Headers, Male Pins Selection Notes

Select this component when precise pin height customization is required for through-hole applications. Ensure the single-row configuration aligns with circuit density needs. Verify that the 2 mm pitch matches existing footprint designs and that the operating temperature range satisfies environmental conditions.

Headers, Male Pins Part Context

This part belongs to the MTMM series of variable post height header strips manufactured by Samtec. The series offers extensive flexibility in terminal count and row configuration, supporting up to four rows and high pin counts for diverse electronic interconnection scenarios.

Headers, Male Pins Replacement Considerations

Consult official substitution guides for compatible variants within the MTMM family. Verify dimensional compatibility and electrical characteristics before replacing with alternative part numbers from the same manufacturer series.
