MTSW-102-08-T-S-110-RA

Headers, Male Pins Overview

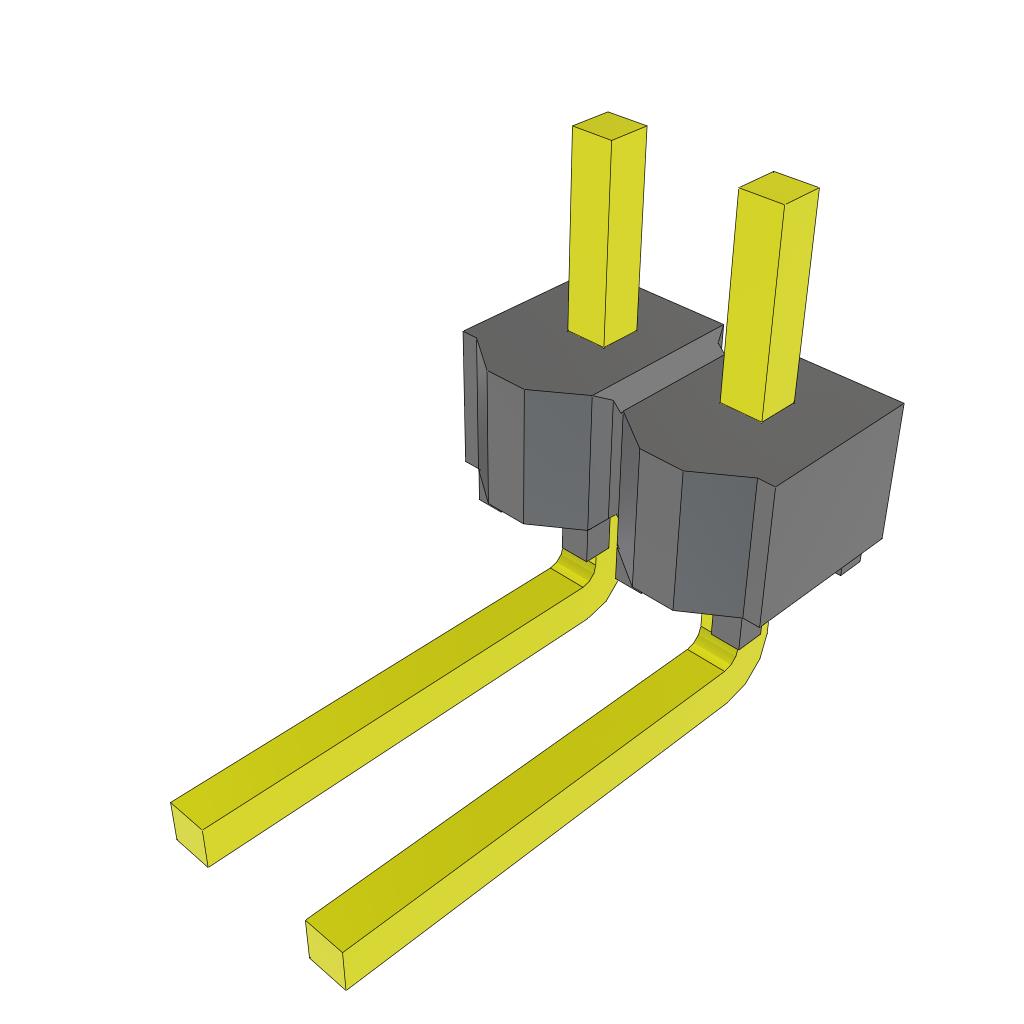

The MTSW-102-08-T-S-110-RA is a single-row PCB header strip from the Samtec Flex Stack MTSW series. It features a 2.54 mm (0.100 in) pin pitch and two positions. The connector utilizes tin-plated phosphor bronze contacts with a polyester insulator rated UL 94 V-0. Designed for right-angle through-hole mounting, it offers a mating post length of 2.794 mm (0.110 in). The unit operates within a temperature range of -55°C to +105°C and is supplied in bulk packaging.

Headers, Male Pins Feature Summary

• Flex Stack design enables variable post heights and body positioning in precise increments
• Modified .025 inch square post system provides customizable stacking flexibility
• Right-angle termination facilitates efficient board-to-board or cable connections

Headers, Male Pins Applications

• Board-to-Board interconnects
• Cable assemblies
• Electronic equipment requiring variable stacking heights

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official documentation to confirm orientation and contact plating. Confirm that the right-angle configuration matches the mechanical layout requirements. Ensure the tin plating specification aligns with environmental constraints. Cross-reference the operating temperature range with application demands. Validate the single-row arrangement against the target footprint.

Headers, Male Pins Selection Notes

Select this component when custom post heights are required for specific stack-up dimensions. The modified square post system allows for flexible positioning adjustments. Verify compatibility with mating connectors such as SSW or SSQ strips. Consider the right-angle form factor for space-constrained layouts. Ensure the tin-plated contacts meet corrosion resistance needs.

Headers, Male Pins Part Context

This part belongs to the MTSW series, which modifies standard TSW headers by offering adjustable post lengths. The Flex Stack technology distinguishes it by allowing height variations in small increments. This series supports diverse electronic applications needing tailored vertical spacing without custom manufacturing.

Headers, Male Pins Replacement Considerations

Consult official Samtec documentation for verified substitute part numbers. Generic equivalents may not replicate the variable post height capabilities. Verify mechanical fit and electrical specifications before substitution.
