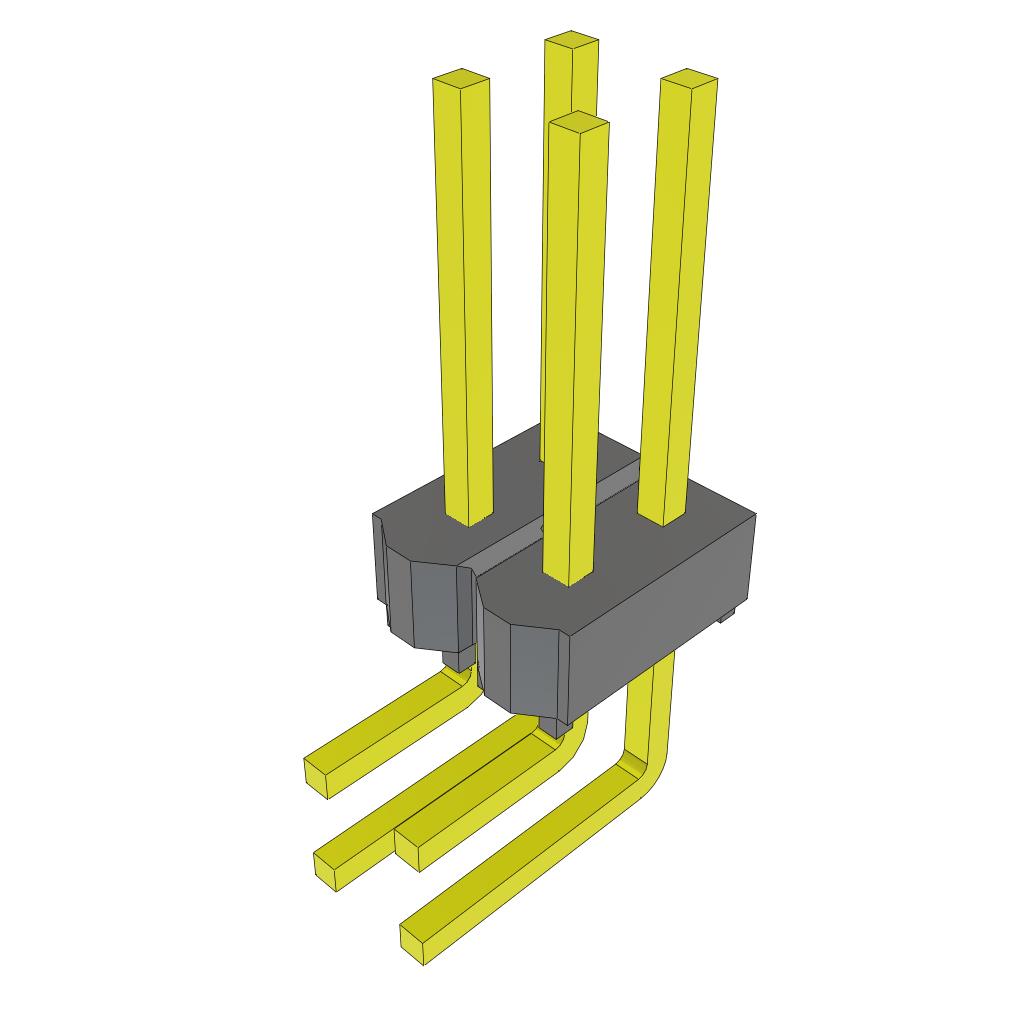

MTSW-102-22-G-D-330-RA

$0.71

Description：CONN HEADER R/A 4POS 2.54MM
Series：Flex Stack, MTSW
Mfr：Samtec Inc.
Package：Bulk,Bulk

SKU:ae78b30e27fb Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MTSW-102-22-G-D-330-RA is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER R/A 4POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for MTSW-102-22-G-D-330-RA

Description：CONN HEADER R/A 4POS 2.54MM
Series：Flex Stack, MTSW
Mfr：Samtec Inc.
Package：Bulk,Bulk
Connector Type：Header, Cuttable
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.330" (8.38mm)
Contact Length - Post：0.090" (2.29mm)
Overall Contact Length：-
Insulation Height：0.219" (5.56mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Gold
Contact Material：Phosphor Bronze
Insulation Material：Polyester, Glass Filled
Features：-
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for MTSW-102-22-G-D-330-RA

MTSW-102-22-G-D-330-RA

Headers, Male Pins Overview

The MTSW-102-22-G-D-330-RA is a variable height PCB header strip from Samtec, featuring a 0.100 inch (2.54 mm) pitch and right-angle orientation. It utilizes a .025 inch (0.635 mm) square post contact system with through-hole termination. The component employs a Flex Stack design allowing modified post height and body position adjustments in 0.005 inch (0.13 mm) increments. This specific part number indicates a dual-row configuration with gold plating.

Headers, Male Pins Feature Summary

Flex Stack design enables flexible post height and body positioning
Square post contact system for reliable connection
Right-angle orientation for space-efficient board layout

Headers, Male Pins Applications

Embedded communication applications
High-power motor control cabinets
Automotive A-Series product integration

Headers, Male Pins Procurement Notes

Verify the exact terminal length and row configuration against the official Series Print before final design implementation. Confirm compliance requirements such as EU RoHS 2 and REACH status for your region. Check California Proposition 65 warnings regarding nickel content if applicable to your end-use environment. Ensure the selected variant matches the required automotive or industrial standards.

Headers, Male Pins Selection Notes

Select this component when variable height adjustment is required within a right-angle header form factor. The Flex Stack feature allows for mechanical tolerance compensation during assembly. Consider the square post contact system for robust mating stability. Verify that the through-hole termination method aligns with your PCB manufacturing capabilities and thermal profile constraints.

Headers, Male Pins Part Context

This part belongs to the MTSW series, which is a variation of the classic TSW header strip. The series offers a wide range of overall pin lengths to satisfy various application needs. It maintains the standard 0.100 inch pitch while providing enhanced flexibility through its unique post design. The series supports both vertical and right-angle orientations.
