MTSW-107-08-L-S-340

Headers, Male Pins Overview

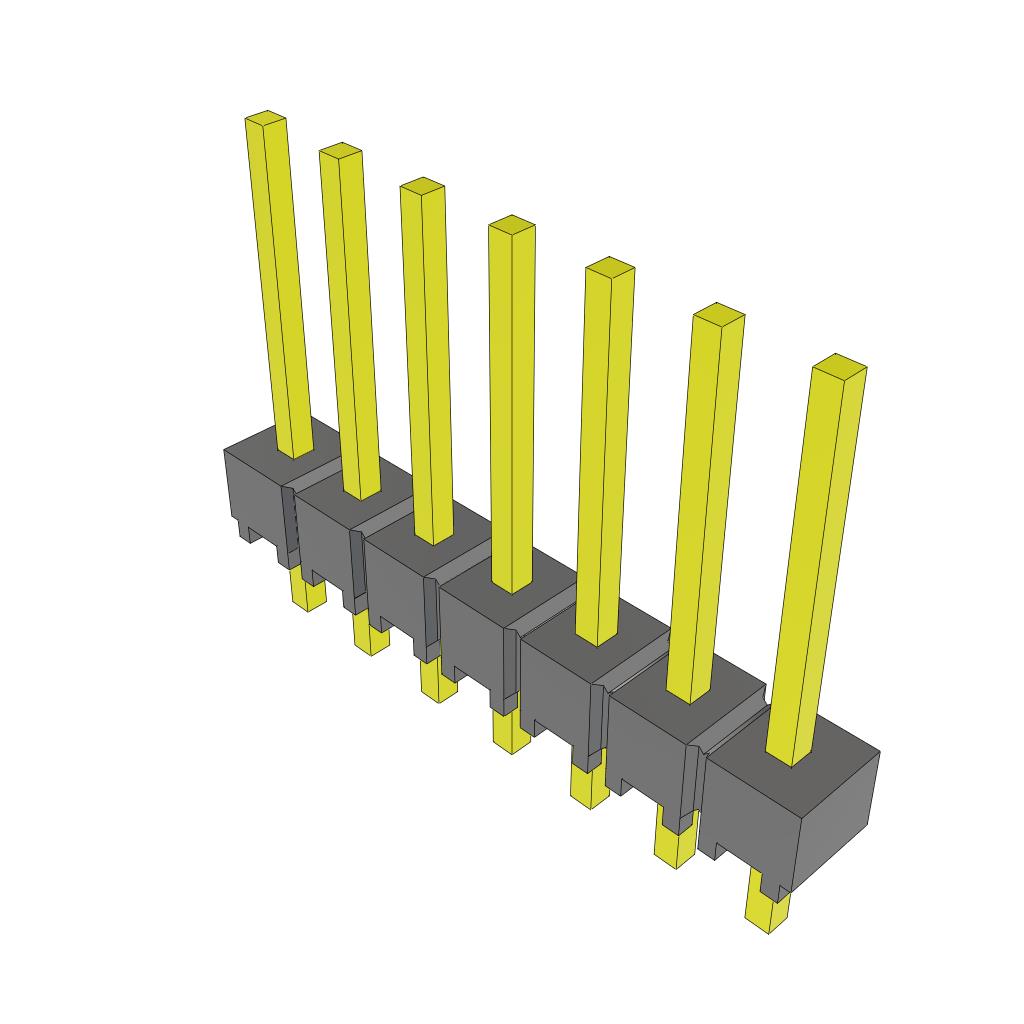

Samtec MTSW-107-08-L-S-340 is a single-row PCB header strip with 7 positions and a 2.54 mm (0.100 inch) pitch. It features modified .025 inch square posts for variable post height customization in 0.005 inch increments. The connector utilizes through-hole termination with phosphor bronze contacts plated with 10 microinch gold. Insulation is provided by black polyester reinforced with glass fiber, rated UL 94 V-0. The overall contact length is 0.340 inches (8.64 mm), with an insulation height of 0.100 inches.

Headers, Male Pins Feature Summary

• Modified .025 inch square post design enables custom post heights and body positioning in precise increments.
• Flex Stack architecture provides extensive stacking flexibility for board-to-board or cable connections.
• Through-hole termination ensures secure mechanical attachment to printed circuit boards.

Headers, Male Pins Applications

• Board-to-board interconnections requiring specific vertical spacing
• Cable-to-board connections utilizing mating strips such as IDSD or IDSS
• General electronic equipment needing customizable header heights

Headers, Male Pins Procurement Notes

Verify the exact suffix code to confirm the specific terminal length and orientation. Confirm that the required contact plating thickness meets the application's electrical requirements. Ensure the insulation material rating aligns with the operating temperature range. Check for automotive A-Series availability if the environment demands higher reliability standards.

Headers, Male Pins Selection Notes

Select this component when standard fixed-height headers do not meet the mechanical clearance requirements. The modified post system allows for tailored heights without custom manufacturing delays. Consider the single-row configuration for space-constrained layouts. Verify compatibility with mating connectors from the SSW, SSQ, ESW, or ESQ series.

Headers, Male Pins Part Context

The MTSW series represents a variation of the classic TSW header strip, offering a wide range of overall pin lengths. It belongs to Samtec's Flex Stack family, which prioritizes stacking flexibility. The 'M' designation indicates the modified post feature, allowing designers to specify exact heights rather than choosing from limited stock options.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include MTSW-107-08-L-S-240 and MTSW-107-08-L-S-130-RA, which share the same position count and pitch but differ in terminal length. Standard TSW headers may fit mechanically but lack the variable height customization capability.
