MTSW-107-09-G-S-100-RE

Headers, Male Pins Overview

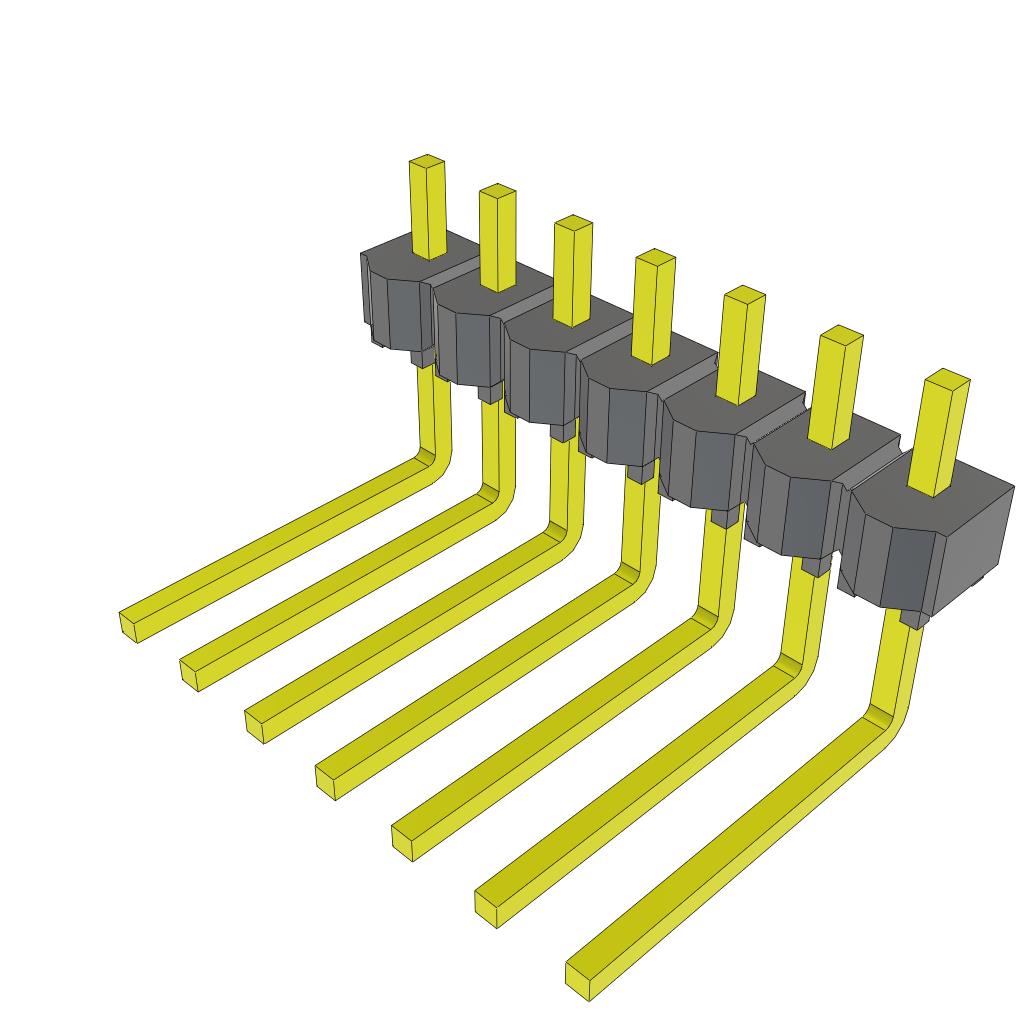

The MTSW-107-09-G-S-100-RE is a variable post height terminal strip from the Samtec MTSW series. It features a .100" (2.54 mm) pitch with seven positions in a single row. The connector utilizes male pin contacts with gold plating on phosphor bronze terminals. Designed for through-hole termination, it offers right-angle mounting. The housing is constructed from polyester with a UL 94 V-0 flammability rating. This component employs an unlatched locking mechanism and supports custom post heights.

Headers, Male Pins Feature Summary

• Flex Stack design allows modified post height and body position adjustments
• Utilizes .025" square post contact system for stacking flexibility
• Supports custom post heights in precise increments

Headers, Male Pins Applications

• Board-to-board connections requiring specific stack heights
• Custom PCB header assemblies with variable clearance needs
• Electronic equipment requiring flexible interconnect solutions

Headers, Male Pins Procurement Notes

Verify the exact suffix configuration to ensure compatibility with required board thicknesses and mating connectors. Confirm that the right-angle orientation matches the mechanical layout constraints of the target assembly. Cross-reference the official datasheet to validate material specifications and environmental ratings against project requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when standard fixed-height headers do not meet specific vertical spacing requirements. The variable post height capability accommodates diverse board stack-ups without custom manufacturing delays. Ensure the through-hole termination method aligns with the printed circuit board fabrication capabilities and that the single-row configuration fits within the available footprint area.

Headers, Male Pins Part Context

This part belongs to the MTSW series of modified .100" pitch headers. The series provides extensive stacking flexibility compared to standard TSW strips. It is designed for applications where precise control over terminal height and body positioning is necessary for optimal mechanical integration and signal integrity in dense electronic assemblies.

Headers, Male Pins Replacement Considerations

Compatible board mates include SSW, SSQ, ESW, ESQ, BCS, BSW, CES, SLW, HLE, and SSM series headers. Cable mates are compatible with IDSD and IDSS type strips. Verify mating interface dimensions to ensure proper engagement with existing connector systems.
