MTV1-120PL1

Headers, Male Pins Overview

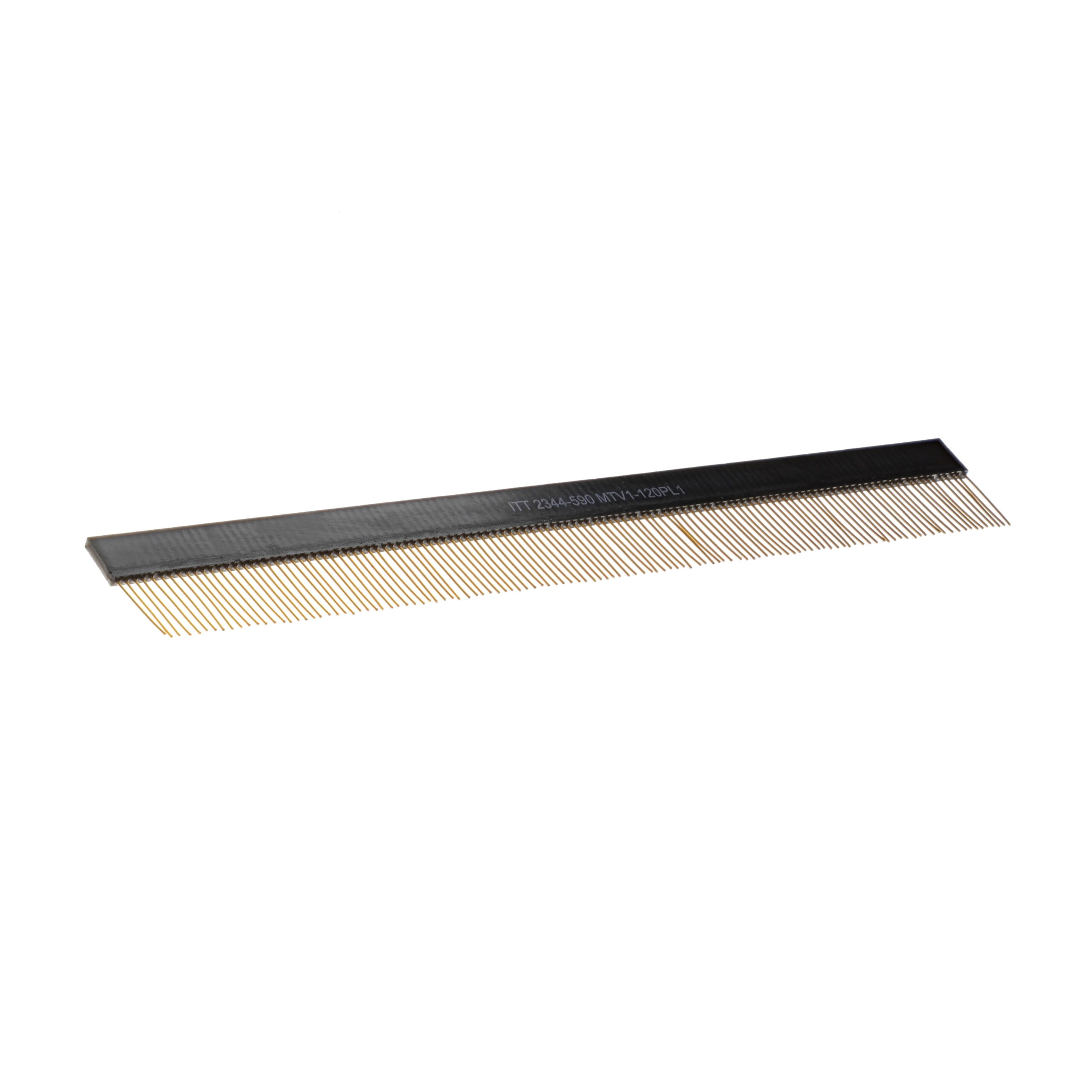

The MTV1-120PL1 is a connector header manufactured by ITT Cannon, LLC. It belongs to the board-to-board and mezzanine connector category. The component features a through-hole mounting style with 120 positions. The pin spacing is specified as 0.050 inches, which equates to 1.27 millimeters.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• High-density 120-position layout for extensive signal routing
• Standardized 0.050-inch (1.27mm) pitch for compatibility

Headers, Male Pins Applications

• Board-to-board interconnections
• Mezzanine connector applications
• Instrumentation systems
• Avionics-style harnesses

Headers, Male Pins Procurement Notes

Verify the specific manufacturer part number against official ITT Cannon documentation to ensure accuracy. Confirm that the through-hole header variant matches the required mechanical and electrical specifications for the target application before procurement.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count header is required for rigid board-to-board connections. The 1.27mm pitch supports dense circuit layouts. Ensure the design accommodates the through-hole footprint and aligns with the 120-position requirement for the specific interface needs.

Headers, Male Pins Part Context

This part falls under the ITT Cannon circular and rectangular connector portfolio. It serves as a critical interconnect solution in electronic assemblies requiring reliable signal transmission between stacked boards or adjacent modules within constrained spaces.

Headers, Male Pins Replacement Considerations

Consult official ITT Cannon substitution guides for verified alternative part numbers. Do not assume generic headers are compatible due to potential differences in contact plating, material composition, or mechanical retention strength.
