Product Detailed Parameters
- Description：FERRITE BEAD 600 OHM 0402 1LN
- Series：MU
- Mfr：Bourns Inc.
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Power, Signal Line
- Number of Lines：1
- Impedance @ Frequency：600 Ohms @ 100 MHz
- Current Rating (Max)：80mA
- DC Resistance (DCR) (Max)：800mOhm
- Ratings：-
- Operating Temperature：-55°C ~ 125°C
- Package / Case：0402 (1005 Metric)
- Mounting Type：Surface Mount
- Height (Max)：0.024" (0.60mm)
- Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
- Features：-
Download product information
Overview

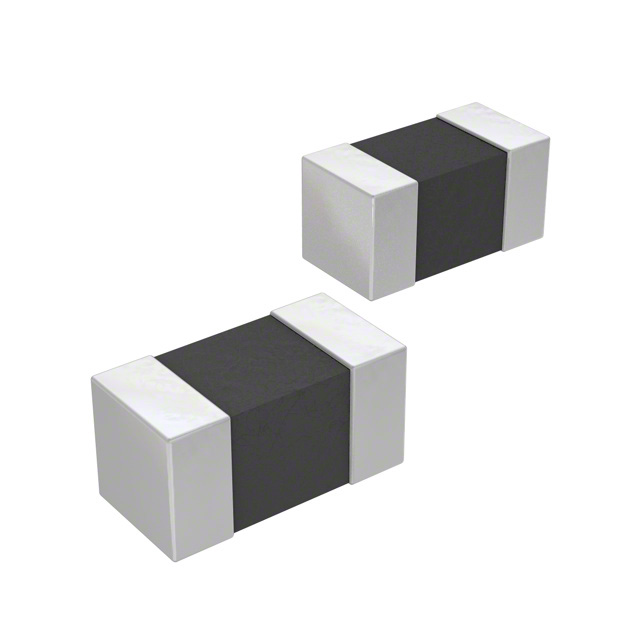

The MU1005-601Y is a high impedance ferrite chip bead manufactured by Bourns Inc. in the 0402 (1005 metric) surface mount package. It provides an impedance of 600 ohms with a tolerance of 25%. The component supports a maximum DC current of 80 mA and has a maximum DC resistance of 800 milliohms. It operates within a temperature range of -55°C to +125°C. Physical dimensions are 1 mm in length, 0.5 mm in width, and 0.5 mm in height.
Feature Summary
- High impedance ferrite construction for effective noise suppression
- Compact 0402 surface mount footprint for space-constrained designs
- Wide operating temperature range suitable for demanding environments
Applications
- High frequency noise filtering in compact electronic circuits
- Signal line protection in portable devices
- EMI suppression in consumer electronics
Procurement Notes
Verify the specific datasheet version from Bourns Inc. to confirm electrical characteristics and mechanical drawings. Ensure the ordering suffix matches the required packaging format. Cross-reference the impedance value and current rating against the target circuit requirements before finalizing procurement decisions.
Selection Notes
Select this component when a small form factor is required for high-frequency noise attenuation. The 80 mA current rating limits suitability for high-power applications. Verify that the 600 ohm impedance at the target frequency aligns with the noise spectrum requiring suppression. Consider the 0402 package constraints during PCB layout.
Part Context
This part belongs to the Bourns MU series of ferrite beads. The series offers various impedance values and current ratings in standard metric packages. The MU1005-601Y specifically addresses needs for moderate current handling in miniature footprints. It complements other passive components in EMI filter networks.
Replacement Considerations
Consult official Bourns documentation for direct cross-references. Alternative suppliers may offer similar 0402 ferrite beads with comparable impedance and current ratings. Verify physical dimensions and terminal compatibility before substitution.
