MUJ-103A-500

Overview

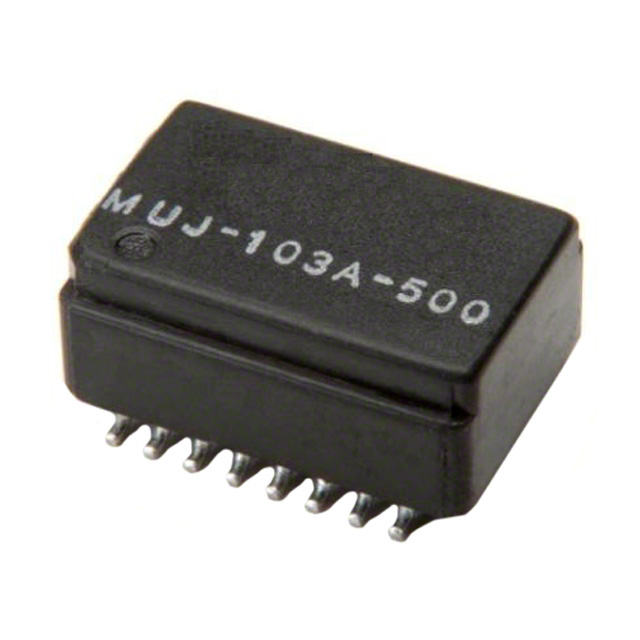

The MUJ-103A-500 is an encapsulated pulse transformer manufactured by Amgis, LLC. It features a 1:1:2:2 turns ratio and provides isolation and data interface capabilities. The component has an inductance of 25mH and is designed for surface mount installation. This device serves as a magnetic coupling element for signal transmission while maintaining electrical isolation between circuits.

Feature Summary

• Encapsulated construction for environmental protection
• Integrated isolation and data interface functionality
• Surface mount package for automated assembly

Applications

• Data communication interface circuits
• Isolated signal transmission systems
• Network interface modules

Procurement Notes

Verify the specific manufacturer part number MUJ-103A-500 against official Amgis documentation to confirm active status and current specifications. Ensure compatibility with surface mount reflow processes. Check for any recent product change notices or obsolescence announcements from the manufacturer before finalizing procurement plans.

Selection Notes

Select this component when a 1:1:2:2 ratio pulse transformer with 25mH inductance is required for surface mount applications. Consider the encapsulated design for robustness. Verify that the isolation requirements and data interface speeds align with the transformer's rated performance characteristics defined in the official datasheet.

Part Context

Amgis, LLC specializes in toroidal power transformers and high-frequency magnetics. The MUJ series represents their line of encapsulated pulse transformers designed for reliable data interface applications. This specific model integrates isolation and signal coupling into a single surface mount component.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
