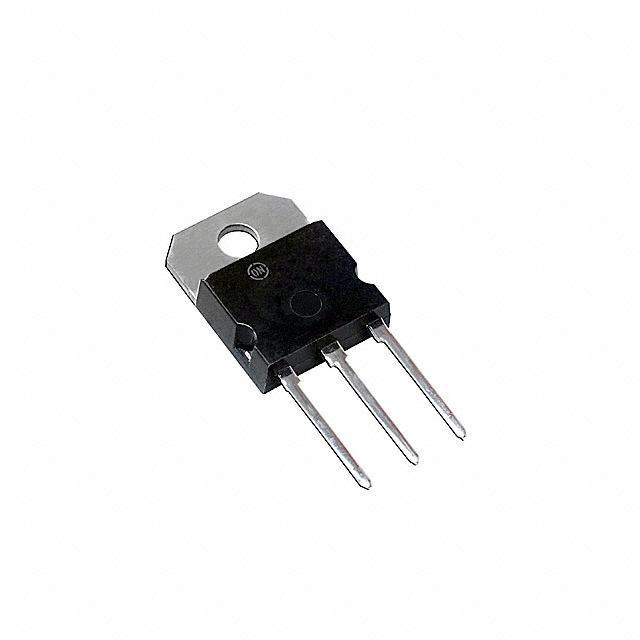

MUR3040PT

Description：DIODE ARRAY GP 400V 15A SOT-93
Series：SWITCHMODE™

SKU:0b65e026c597 Category: Diode Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARRAY GP 400V 15A SOT-93
Series：SWITCHMODE™
Mfr：onsemi
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：400 V
Current - Average Rectified (Io) (per Diode)：15A
Voltage - Forward (Vf) (Max) @ If：1.25 V @ 15 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：60 ns
Current - Reverse Leakage @ Vr：10 µA @ 400 V
Operating Temperature - Junction：-65°C ~ 175°C
Mounting Type：Through Hole
Package / Case：TO-218-3
Supplier Device Package：SOT-93
Grade：-
Qualification：-

Download product information

MUR3040PT

Overview

The MUR3040PT is a dual ultrafast silicon rectifier diode in a TO-218AC package. It features a peak repetitive reverse voltage of 400V and an average rectified forward current of 15A per leg at a case temperature of 145°C. The maximum non-repetitive peak surge current is 200A, with a maximum power dissipation of 100W. Reverse recovery time is less than 55ns, and the junction-to-case thermal resistance is 1.5°C/W. Maximum operating and storage temperatures range from -55°C to 175°C.

Feature Summary

Ultrafast soft recovery characteristics minimize ringing and electrical noise in switching circuits.
Planar construction utilizes ion-implanted epitaxial technology for reliability.
Rated for avalanche energy to withstand transient conditions.

Applications

Switching power supplies
Power switching circuits
Energy steering and clamping

Procurement Notes

Verify the manufacturer origin, as the component was originally developed by Fairchild Semiconductor and is now part of onsemi. Confirm that the ordering suffix matches the specific datasheet revision required for your design. Ensure the TO-218AC package dimensions align with your PCB footprint requirements before finalizing procurement.

Selection Notes

Select this component when low stored charge and fast recovery are critical for reducing switching losses. The common cathode configuration supports single-phase applications requiring two independent legs. Consider the 175°C maximum junction temperature for high-temperature environments where standard silicon limits may be exceeded.

Part Context

This device belongs to the MUR series of ultrafast recovery diodes, designed specifically for high-frequency power conversion. It shares architectural similarities with the RURH1540CC within the same datasheet but differs in packaging and branding conventions established during the transition from Fairchild to onsemi.
