MUR5U60-TP

Single Diodes Overview

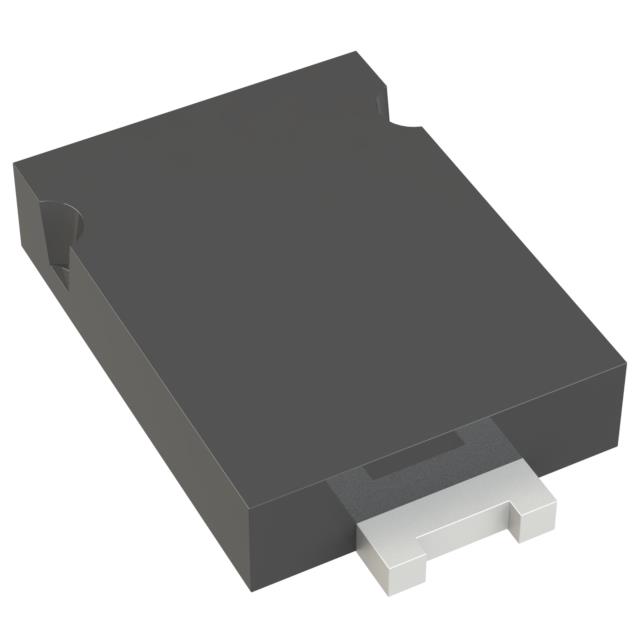

The MUR5U60-TP is a surface mount ultrafast rectifier diode manufactured by Micro Commercial Components (MCC). It features a maximum repetitive peak reverse voltage of 600V and an average forward current rating of 5A. The device utilizes a TO-277 package and exhibits a typical junction capacitance of 50pF measured at 1.0MHz with 4.0V reverse bias. Key electrical characteristics include a maximum reverse recovery time of 50ns under specified test conditions, a typical forward voltage of 1.2V at 5A and 25°C, and a maximum reverse current of 5µA at rated DC blocking voltage.

Single Diodes Feature Summary

• Ultrafast reverse recovery time for high efficiency switching applications
• Halogen-free green device construction meeting UL 94 V-0 flammability ratings
• Lead-free finish compliant with RoHS directives

Single Diodes Applications

• High frequency rectification in power supplies
• Free-wheeling diodes in inductive load circuits
• DC-DC converter output rectification

Single Diodes Procurement Notes

Verify authenticity through authorized MCC distributors to avoid counterfeit components. Confirm the -TP suffix indicates tape and reel packaging containing 4000 pieces per reel. Ensure compliance with specific environmental requirements such as halogen-free status if mandated by project specifications. Check for updated datasheet revisions prior to final design implementation.

Single Diodes Selection Notes

Select this component for designs requiring fast switching speeds and low reverse recovery charge. The TO-277 package offers a compact footprint suitable for surface mount assembly. Evaluate thermal management needs based on the specified thermal resistance values from junction to case and ambient. Consider the 600V rating for appropriate voltage headroom in the target circuit application.

Single Diodes Part Context

This ultrafast rectifier belongs to the MUR series of high-speed diodes designed for efficient power conversion. The TO-277 package provides robust mechanical stability and thermal performance compared to smaller surface mount options. The product line emphasizes reliability through strict manufacturing controls and material purity standards.

Single Diodes Replacement Considerations

Cross-reference with other 600V 5A ultrafast rectifiers in the TO-277 package. Verify pinout compatibility and ensure equivalent or superior reverse recovery time and forward voltage specifications are met by potential substitutes.
