MURF1640CTHC0G

Description：DIODE ARRAY GP 400V 16A ITO220AB
Series：-

SKU:f43c15b29fe2 Category: Diode Arrays Brand: Taiwan Semiconductor Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARRAY GP 400V 16A ITO220AB
Series：-
Mfr：Taiwan Semiconductor Corporation
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：400 V
Current - Average Rectified (Io) (per Diode)：16A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 8 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：50 ns
Current - Reverse Leakage @ Vr：10 µA @ 400 V
Operating Temperature - Junction：-55°C ~ 150°C
Mounting Type：Through Hole

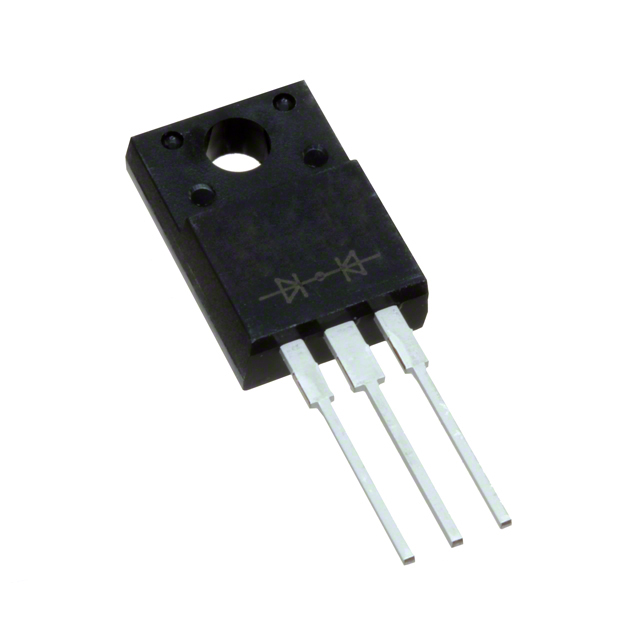

Package / Case：TO-220-3 Full Pack, Isolated Tab
Supplier Device Package：ITO-220AB
Grade：Automotive
Qualification：AEC-Q101

Download product information

MURF1640CTHC0G

Overview

The MURF1640CTHC0G is a high-efficiency recovery rectifier manufactured by Taiwan Semiconductor Corporation. It features a common cathode configuration with two elements housed in an ITO-220AB package. The device supports a maximum repetitive reverse voltage of 400V and an average forward current of 8A per element. Key electrical characteristics include a fast reverse recovery time of 50ns, a peak non-repetitive forward surge current of 100A, and a maximum forward voltage of 1.3V at 8A. It operates within a junction temperature range of -55°C to 150°C.

Feature Summary

High efficiency recovery design for reduced switching losses
Common cathode dual element configuration
Fast reverse recovery time suitable for high-frequency applications
Isolated tab construction for mounting flexibility

Applications

High voltage ultra-fast recovery circuits
DC-DC converters
Power supply output rectification

Procurement Notes

Verify the specific suffix 'C0G' against official manufacturer documentation to confirm compliance details and packaging specifications. Ensure the component matches the ITO-220AB footprint and pinout requirements for your PCB layout. Cross-reference the datasheet revision date to ensure alignment with current manufacturing standards and environmental regulations.

Selection Notes

Select this component when a common cathode arrangement is required for synchronous rectification or bridge configurations. The 50ns reverse recovery time makes it appropriate for applications demanding faster switching speeds than standard soft recovery diodes. Verify that the thermal management solution can handle the power dissipation associated with the 1.3V forward voltage drop at the target operating current.

Part Context

This part belongs to the MURF series of ultra-fast recovery rectifiers from Taiwan Semiconductor. The series is designed for general-purpose high-speed switching applications. The MURF1640 variant specifically targets 400V blocking voltage requirements. The C0G suffix typically denotes specific tape and reel packaging or compliance attributes as defined by the manufacturer.
