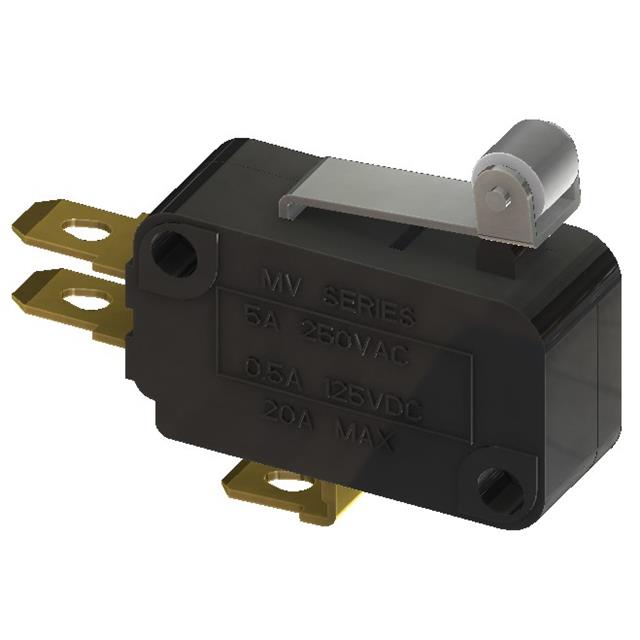

MV-3004A-P

MV-3004A-P is listed in the Limit Switches range at ChipApex. The manufacturer field lists Moujen. Its product description is SWITCH SNAP ACTION SPDT 5A 250V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for MV-3004A-P

• Description：SWITCH SNAP ACTION SPDT 5A 250V
• Series：MV
• Mfr：Moujen
• Package：Retail Package
• Circuit：SPDT
• Switch Function：On-Mom
• Current Rating (Amps)：5A (AC), 500mA (DC)
• Voltage Rating - AC：250 V
• Actuator Type：Lever, Roller
• Mounting Type：Chassis Mount
• Termination Style：Quick Connect - 0.187" (4.7mm)
• Ingress Protection：IP40
• Features：POM Roller
• Operating Force：280gf
• Release Force：50gf
• Pretravel：0.063" (1.6mm)
• Differential Travel：0.025" (0.6mm)
• Overtravel：0.031" (0.8mm)
• Operating Temperature：-20°C ~ 80°C
• Voltage Rating - DC：125 V

Limit Switches datasheet and documents for MV-3004A-P
