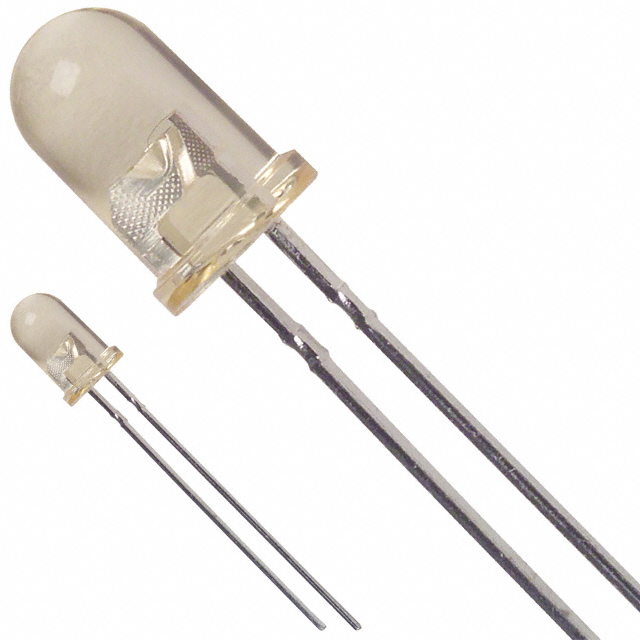

MV3750

$0.05

Description：LED RED CLEAR T-1 3/4 T/H
Series：-
Mfr：onsemi
Package：Bulk

SKU:a76b06a1bf6c Category: LED Indication - Discrete Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MV3750 is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists onsemi. Its product description is LED RED CLEAR T-1 3/4 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for MV3750

Description：LED RED CLEAR T-1 3/4 T/H
Series：-
Mfr：onsemi
Package：Bulk
Color：Red
Configuration：Standard
Lens Color：Red
Lens Transparency：Clear
Millicandela Rating：150mcd
Lens Style：Round with Domed Top
Lens Size：5mm, T-1 3/4
Voltage - Forward (Vf) (Typ)：2.2V
Current - Test：20mA
Viewing Angle：24°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：635nm
Features：-
Package / Case：Radial
Supplier Device Package：T-1 3/4
Size / Dimension：-
Height (Max)：8.89mm

LED Indication - Discrete datasheet and documents for MV3750

MV3750

LED Indication - Discrete Overview

The MV3750 is a red LED circuit board indicator manufactured by onsemi. It utilizes a T-1 3/4 through-hole package with a diffused lens type and clear solid-state construction. The component operates at a wavelength of 635 nm and supports a forward current of 60 mA. It is classified under LED Indication subcategories and is available in bulk packaging.

LED Indication - Discrete Feature Summary

Provides high-efficiency red illumination for visual status indication
Features a diffused lens to optimize light distribution
Designed for reliable through-hole mounting on printed circuit boards

LED Indication - Discrete Applications

Electronic equipment status monitoring
Power supply unit indicators
Control panel signal visualization

LED Indication - Discrete Procurement Notes

Verify the specific ordering suffix, as variations may exist between MV3750 and MV37509MP6. Confirm RoHS compliance details directly from the manufacturer's documentation. Check current availability status, as this product line may be subject to discontinuation or limited supply constraints depending on the region and distributor.

LED Indication - Discrete Selection Notes

Select this component when a standard red visual indicator is required for through-hole assembly. Ensure the design accommodates the T-1 3/4 form factor and 60 mA forward current requirements. Consider the diffused lens characteristic for uniform visibility. Verify that the 635 nm wavelength aligns with the application's color specification needs.

LED Indication - Discrete Part Context

This part belongs to onsemi's LED Circuit Board Indicators product family. It serves as a discrete signaling component within broader electronic systems. The manufacturer provides technical documentation including datasheets and mechanical drawings to support integration into industrial and consumer electronics designs requiring reliable visual feedback.
