MV5024A

LED Indication - Discrete Overview

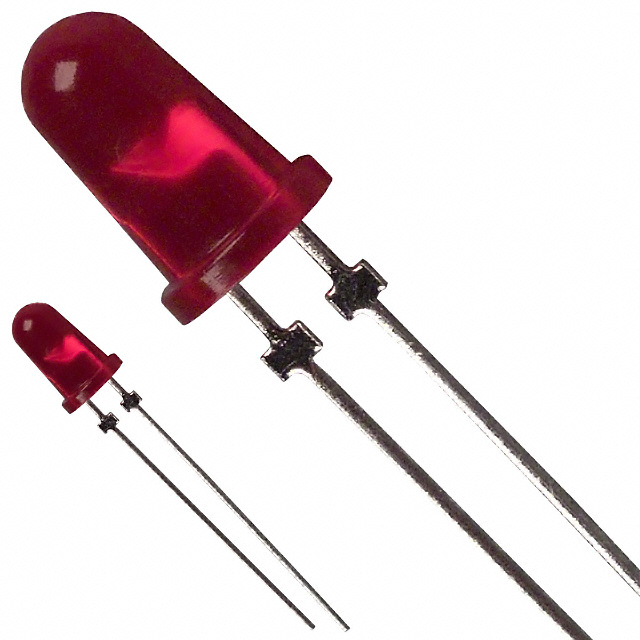

The MV5024A is a single-color red LED manufactured by QT Optoelectronics, not onsemi. It features a diffused lens and utilizes a T-1 3/4 (5mm) round package design. The component operates with radial mounting and has a peak wavelength of 660 nm. It provides a nominal luminous intensity of 3 mcd and offers a viewing angle of 40 degrees. The device is supplied in tape and reel packaging.

LED Indication - Discrete Feature Summary

• Single-color red light emission
• Diffused lens configuration for broad visibility
• Radial leaded construction

LED Indication - Discrete Applications

• General indicator lighting
• Panel status displays
• Consumer electronics visual signals

LED Indication - Discrete Procurement Notes

Verify the manufacturer origin carefully as the model MV5024A is attributed to QT Optoelectronics in available records, despite the query specifying onsemi. Confirm package type and electrical characteristics against official datasheets before integration. Ensure compatibility with existing PCB footprints for radial T-1 3/4 components.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm red indicator is required with moderate brightness levels. The diffused lens suits applications needing wide-angle visibility without glare. Verify voltage drop and current requirements match the driving circuit capabilities for reliable operation within specified temperature ranges.

LED Indication - Discrete Part Context

This component belongs to the category of discrete optoelectronic devices, specifically through-hole LEDs. It serves as a fundamental signaling element in electronic assemblies where visual feedback is necessary. The T-1 3/4 form factor ensures compatibility with legacy and standard board layouts designed for 5mm diameter components.

LED Indication - Discrete Replacement Considerations

Direct substitutes must match the 5mm radial package, red color, and similar luminous intensity. Check pinout compatibility and forward voltage specifications to ensure seamless replacement in existing designs without modifying the circuit board.
