MV57123

LED Indication - Discrete Overview

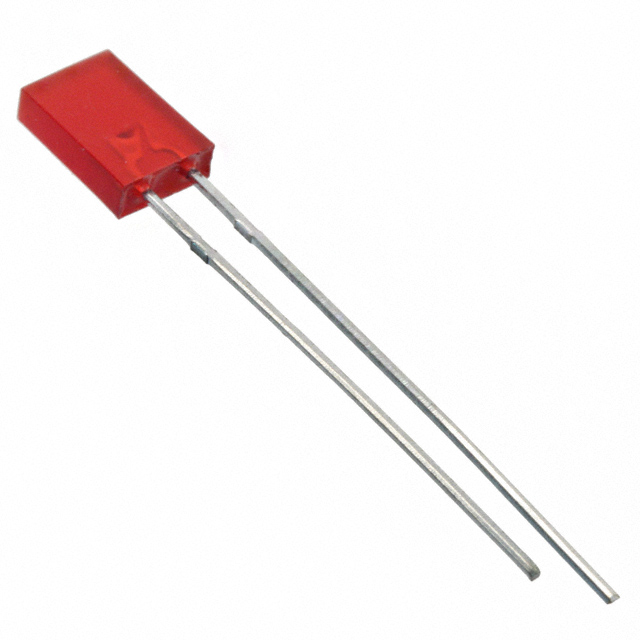

The Everlight MV57123 is a single-color red LED designed for through-hole mounting. It features a rectangular lens with diffused transparency and emits light at a wavelength of 635 nm. The component offers a viewing angle of 100 degrees and is classified as a high-efficiency device within the single-color LED product line.

LED Indication - Discrete Feature Summary

• Rectangular lens geometry with diffused transparency
• High efficiency red emission at 635 nm wavelength
• Through-hole installation style

LED Indication - Discrete Applications

• Indicator lighting in electronic equipment
• Panel status displays
• General purpose optical signaling

LED Indication - Discrete Procurement Notes

Verify current availability status as the MV57123 series may be discontinued or subject to limited supply constraints. Confirm RoHS compliance details and specific suffix variations (e.g., F4A0) against official Everlight documentation before procurement planning.

LED Indication - Discrete Selection Notes

Select this component when a rectangular form factor with wide viewing angle is required. Ensure circuit design accommodates the forward voltage and current specifications typical for high-efficiency red LEDs. Verify thermal management requirements for continuous operation.

LED Indication - Discrete Part Context

The MV57123 belongs to Everlight's single-color LED portfolio, specifically optimized for red illumination applications. It utilizes standard through-hole technology, making it suitable for legacy PCB designs and general indicator purposes where rectangular footprint compatibility is necessary.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official Everlight documentation for cross-reference information or equivalent product lines.
